Vintage Components - Campagnolo Bottom Brackets

On this page:

Nuovo Record: Nuovo Record 68 x 115 spindle | Nuovo/Super Record 68 x 120 triple spindle | Nuovo Record English bottom bracket | Nuovo Record Italian bottom bracket | Nuovo Record Italian cups | Nuovo Record Italian 70 x 120 spindle | Nuovo Record French bottom bracket | Nuovo Record French-threaded cups

C-Record: C-Record English bottom bracket

Chorus: Chorus late 80s English bottom bracket

Athena: Athena Italian bottom bracket

Triomphe:Triomphe English bottom bracket

Euclid: Euclid Italian bottom bracket

We do not have on-line sales at this time. Please call us: (503) 480-2001 or email: sscycleworks@comcast.net


Campagnolo Nuovo/Super Record bottom bracket spindle. 68mm bracket width x 115mm spindle length

We have two: 68mm spindle #1 | 68mm spindle #2

68 mm Nuovo Record Spindle No 1. used $35.00

Part# BB-01

68mm bracket width x 115mm spindle length

This spindle dates to sometime in the late 1970s. It will work in English and French-threaded bottom brackets.

Campagnolo Nuovo record spindle

The bearing surface is in great condition

68 mm Nuovo Record Spindle No 2. used $35.00

Part# BB-01-02

We believe this spindle dates to sometime in the early 1980s. It will work in English and French-threaded bottom brackets.

Campagnolo Nuovo Record  bottom bracket spindle

This spindle shows little use


Nuovo Record/Super Record English triple spindle, 68 x 120. used, $100.00

Part # BB-02

Campagnolo spindle

The bearing surfaces are in wonderful condition.

Campagnolo triple spindle

It's a bit hard to read the top numbers. They are: 68-SS-120. Below them: X3-Z


Nuovo Record English bottom bracket (1.370 x 24), 68 mm spindle. Used $100.00

We have two in wonderful condition: NR English bottom bracket #1 | #2

English Nuovo Record bottom bracket number 1: Part# BB-10

This bottom bracket will work on Gran Sport, Nuovo Record and Super Record cranksets. This bottom bracket was produced into the late 1987. Though used, the bearing surfaces are in excellent condition. This bottom bracket will give years of good service.

Campagnolo Nuovo Record bottom bracket

Great condition. Still the classic, perfect bottom bracket.

Campagnolo bottom bracket

Though decades old, it's still ready to give years of service.

English Nuovo Record bottom bracket number 2: Part# BB-10-02

This bottom bracket will work on Gran Sport, Nuovo Record and Super Record cranksets. This bottom bracket was produced into late 1987. Though used, the bearing surfaces are in excellent condition. This bottom bracket will give years of good service.

Campagnolo Nuorvo Record english bottom bracket

This bottom bracket has clearly been serviced with good tools. The notches and flats are still sharp.

Campagnolo English Nuovo Record bottom bracket

The bearing surfaces are nicely polished

Campagnolo English Nuovo Record bottom bracket cups

The cups, showing their English threadings

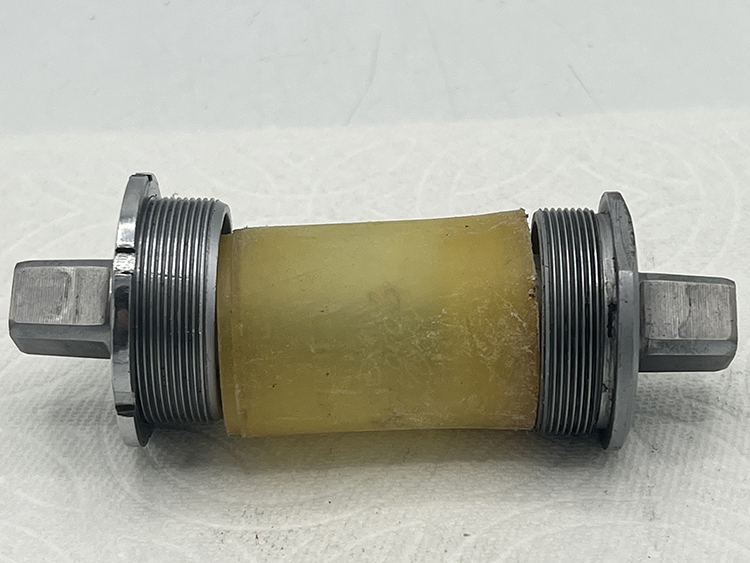

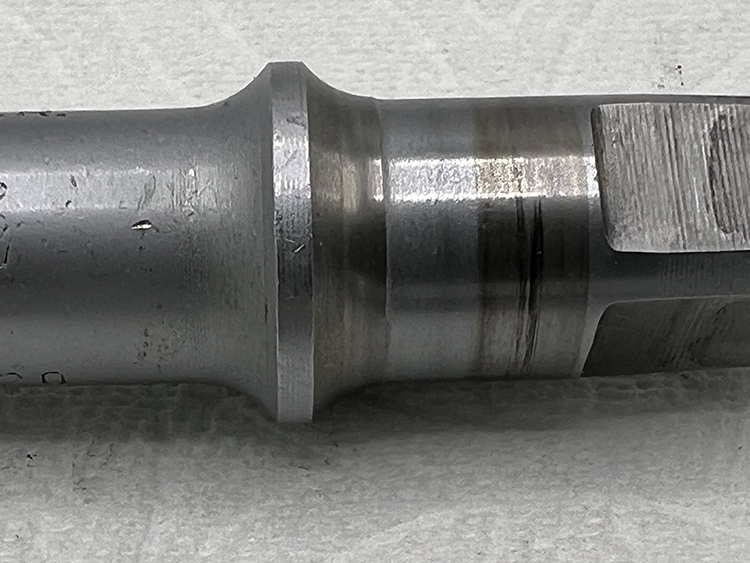

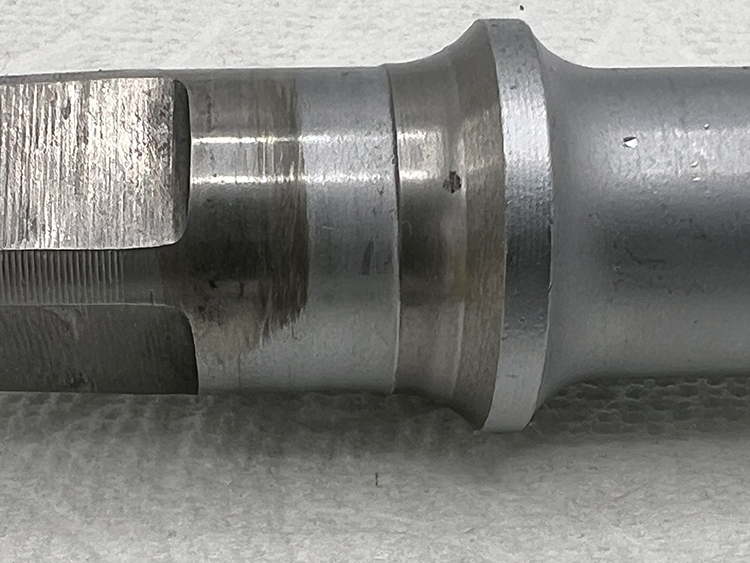

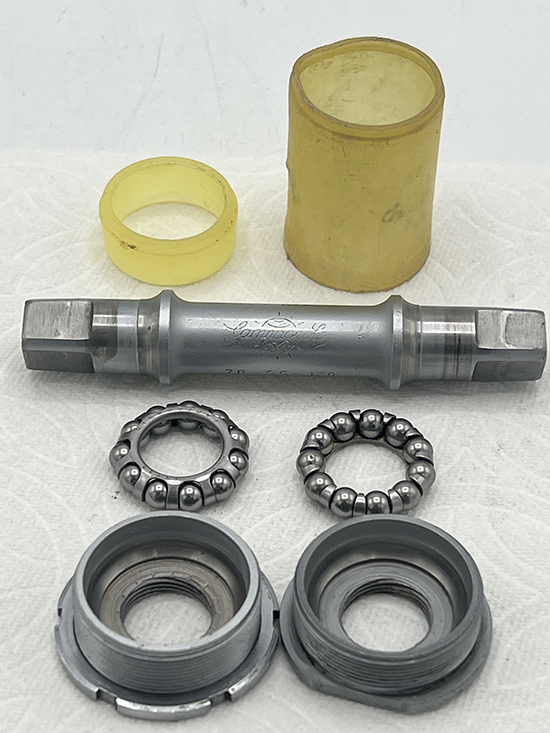

Nuovo Record Italian bottom bracket (36 x 24), 70 mm x 115mm spindle.

This bottom bracket will work on Gran Sport, Nuovo Record and Super Record cranksets. The Nuovo Record bottom bracket was produced into the late 1987. Though used, the bearing surfaces of the sets posted below are in excellent condition. These bottom brackets will give years of good service.

We have two: Nuovo Record bottom bracket #1 | #2

Nuovo Record Italian bottom bracket #1 used $100.00

Part# BB-09-01

Nuovo Record italian bottom bracket

Though used, it's bearing surfaces are in lovely condition and have many hard miles left in them

Campagnolo Nuovo Record bottom bracket

As your bike would see it

Nuovo Record Italian bottom bracket #2. used $100.00

Part# BB-09-02

Campagnolo Nuovo Record Italian bottom bracket

Great condition and it looks like it was worked on with good tools.

Campagnolo Nuovo Record bottom bracket

The bearing surfaces are smooooooth

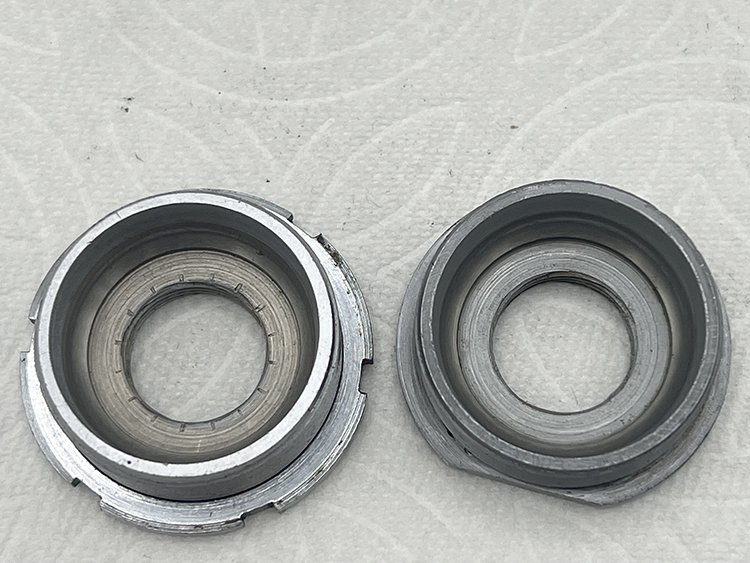

Italian bottom bracket cups

The outsides of of the cups


Campagnolo Nuovo Record Italian bottom bracket cups (36 x 24) used. $90/pair, $50.00 each

Part# BB-14

Campagnolo bearing retainers are included.

Campagnolo Nuovo Record Italian cups

The bearing surfaces are very smooth.

Campagnolo Nuovo Record Italian cups

The other side of the cups


Nuovo Record/Super Record Italian spindle, 70 x 120. used, $100.00

Part# BB-03

113mm long. Great condition. Bearing surfaces are worn very smooth.

Campagnolo Italian spindle

The proper spindle for a classic Nuovo Record/Super Record double crankset


Campagnolo Nuovo Record French-threaded bottom bracket (35 x 1, 68mm). New old stock. $200.00

Campagnolo Nuovo Record french-threaded bottom bracket

New old stock, in the box.


Campagnolo Nuovo Record French-threaded cups (35 x 1). We have two sets.

Set #1 with flat-faced fixed cup | Set #2 with relieved fixed cup

Nuovo Record French-threaded cups (35 x 1) with flat faced-fixed cup. Lightly used. $70.00

Part# BR-16-02

This is the original Nuovo Record cup design for the 1046/a Nuovo Record bottom bracket that came out in 1966 with the fixed cup having a flat face. The relieved fixed cups might have come out in the mid to late 1970s.

Campagnolo Nuovo Record French cups

The fixed cup's smooth face means it's early production.

Campagnolo Nuovo REcord French cups

The bearing surfaces are excellent.

Nuovo Record French-threaded cups (35 x 1) with relieved fixed cup. Lightly used. $70.00

Part# BR-16

This style came out later in the Nuovo Record's production.

French Nuovo Record cups

A look at the bearing surfaces. Smooth as a baby's bottom.

Campagnolo French cups

The various flats and notches are still sharp and un-rounded. The fixed cup has material removed where the dimensions are engraved. This marks it as later production.

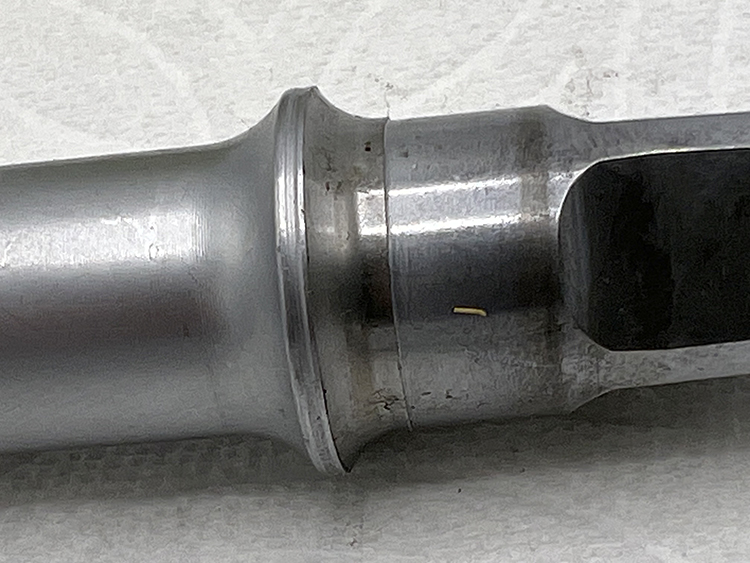

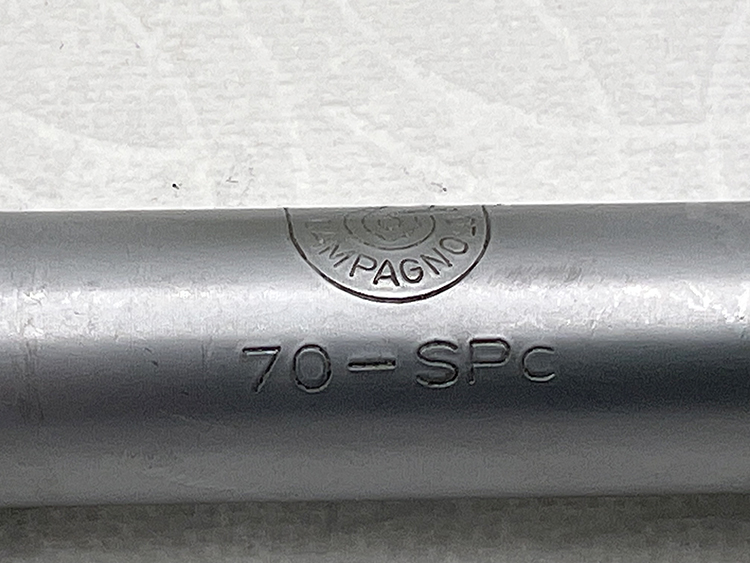

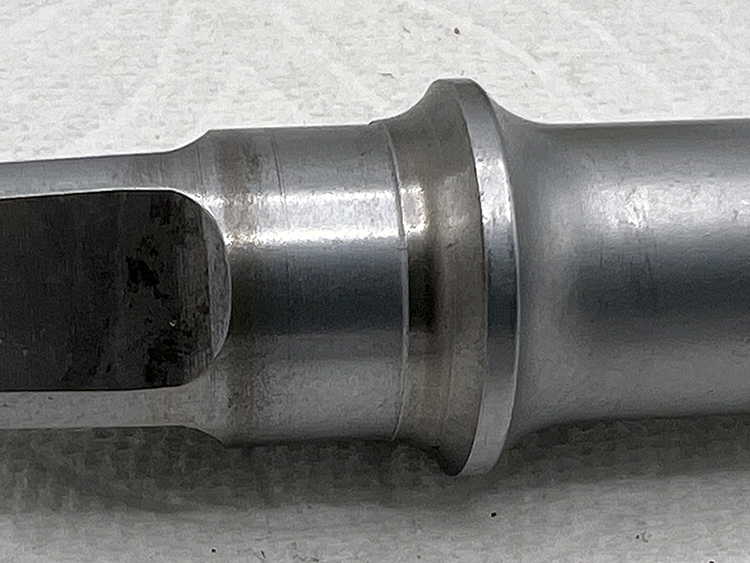

C-Record English (1.370 x 24) bottom bracket. Very light use. $150.00

Campagnolo pulled out all the stops when it produced this bottom bracket in late 1980s until early 1990s. The ground & hardened steel bearing surfaces are precisely glued into polished aluminum cups. The square-tapered spindle is symmetrical, 111 mm long. Bearings are 7/32".

Take a look at the photos. This bottom bracket is in incredible condition.

Campagnolo C-Record English bottom bracket

Lovely to look at, better to ride with

C-Record English bottom bracket

As your bike would see it.

C-Record bottom bracket cups

The cups: The lock-ring notches and aluminum fixed-cup flats are in great condition.


Chorus English bottom bracket 1.370 x 24, 110 x 68 square-taper spindle. Used. $100.00

This is an early Chorus bottom bracket, we're guessing late 1980s.

Campagnolo Chorus bottom bracket

The first Chorus components were produced in 1987.

Campagnolo Chorus bottom bracket

Taken apart, it's condition is clearly very good.

Chorus english bottom bracket

The lock-ring notches and fixed-cup flats are still nice and sharp. The first owner used the right tools when installing it. Thanks.


Athena Italian bottom bracket: 36 x 24 threaded cups (Italian threads), 115mm spindle. New in box, $75.00

Part# BB-12

This bottom bracket was produced in the late 1980s. It is for an Italian threaded, 70mm bottom bracket shell.

Campagnolo Athena Italian bottom bracket

New in the box


Triomphe English bottom bracket English/ISO 1.370" x 24 tpi cups, 115mm x 68mm spindle. used $50.00

Part# BB-19

Made mid to late 1980s.

Triomphe Englis bottom bracket

The tool flats are still nice a sharp. A pro installed and removed this bottom bracket.

Triomphe bottom bracket

The bearing sufaces are smoooth

Triomphe English cups

The cups


Euclid MTB Italian bottom bracket: 36 x 24 cups (Italian threads), 132mm symmetrical spindle. New in box. $49.99

Part# BB-11

The Euclid group was Campagnolo's 1989 foray into MTB components. The result was a groupset some thought too beautiful to be ridden off-road. But the group's function was superb.

The spindle had an interesting Campagnolo innovation. The rider could inject grease into the side (crank bolt holes) of the hollow spindle and the grease would slowly make its way out a small hole in the enlarged spindle center, and from there, to the bearings. The cups have double seals to keep out water and dirt.

Campagnolo Euclid bottom bracket

Euclid Italian-threaded bottom bracket, new in the box.
