Dia Compe Brakes & caliper parts

On this page: Royal Compe black calipers | New Gran Compe NGC 400 calipers | Front New Gran Compe NGC 400 caliper | Gran Compe 400 calipers | Gran Compe 400 rear caliper | 5000 calipers | 500G standard-reach caliper set | 982 cantilever calipers | 986 Ti-colored cantilever calipers | 986 cantilever calipers | 987 cantilever calipers | Blue 987 Cantilever Caliper Set | XCM cantilever caliper set | XCM single cantilever arm

Parts: Front incassio (recessed allen-key) centerbolt | Rear incassio (recessed allen-key) centerbolt | Rear drop-bolt incassio (recessed allen-key) centerbolt | Crossbow Straddle Cable Hangers

Dia Compe ATB and road brake levers are posted here

We do not have an on-line shopping cart at this time. Please call us: (503) 480-2001 or email: sscycleworks@comcast.net

Dia Compe is the brand name of Japanese component maker KK Yoshigai. The firm was stated in Osaka, Japan, in 1930. The first product off its production line was a brakeset. Though Dia Compe has long since branched out into headsets, suspension forks and stems, brakes and brake parts are what most people rightfully think of when they see the Dia Compe name.

It was Dia Compe who invented the famous "Safety Lever" extension levers that allow a rider to put his hands on the tops of a set of drop handlebars and still stop his bike.

Swiss brake maker Weinmann was was so taken with the invention that the two firms entered a design-sharing agreement. Weinmann could make the safety levers and Dia Compe could make its own version of the highly-regard Weinmann brakes. That is why those highly polished Dia Compe brakes of the bike boom look just like Weinmanns.

---

Dia Compe Royal Compe black brake calipers. Lightly used, $80.00/set of two calipers

• 39mm - 49mm reach
• Allen-key recessed mounting.

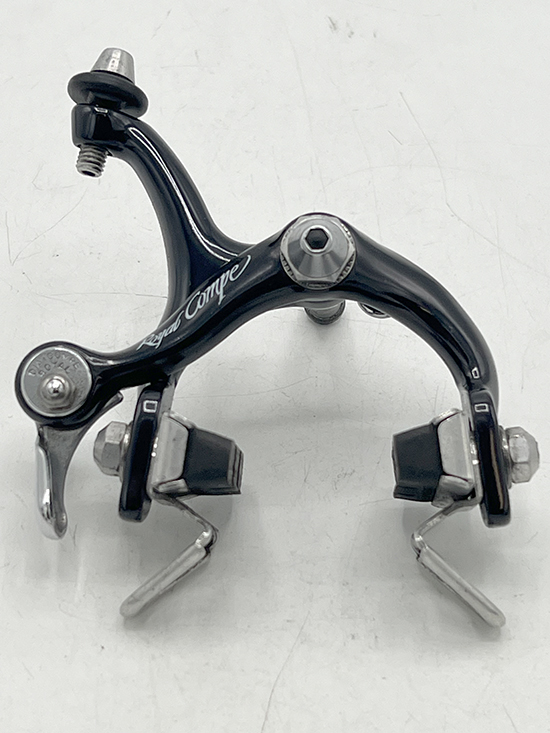

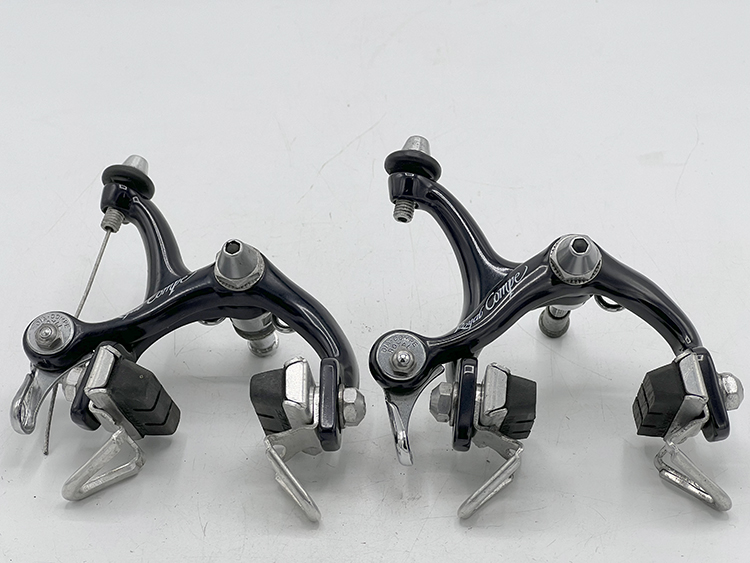

Front view of the calipers

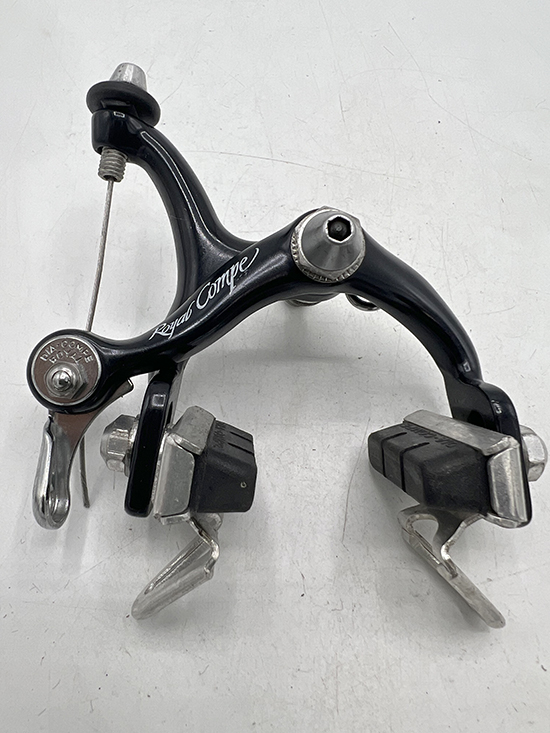

Here's just the front caliper

Side view close-up of the front caliper

Here's the other side of the front caliper.

Here's the back of the front caliper

The rear caliper

Side view of the rear caliper

Here's the other side of the rear caliper.

Back of the rear caliper

---

Dia Compe New Gran Compe NGC400 brake caliper set. New, $125.00/set

• These calipers are new, they were taken off a new bike.
• These calipers were produced from the mid-1980s to the late-1980s
• Reach: 40mm - 50mm
• Unlike most sets of NGC400 calipers, the quick release is incremental, as on a Campagnolo Nuovo Record side-pull caliper. You can open it just enough to get the clearance you need. The cables are clamped (a far superior method, that forestalls broken and frayed wires), rather than being run through a bolt with a hole in it.
• Upon request, for an extra charge, we can fit these calipers with incassio (allen-key) center-bolt hardware.

Beautifully finished.

Side view

From the other side.

From the top

---

Dia-Compe front New Gran Compe NGC 400 standard-reach caliper. New, $75.00/each

Part# 81110

• Though this caliper has a bit of shop wear, it is a new.

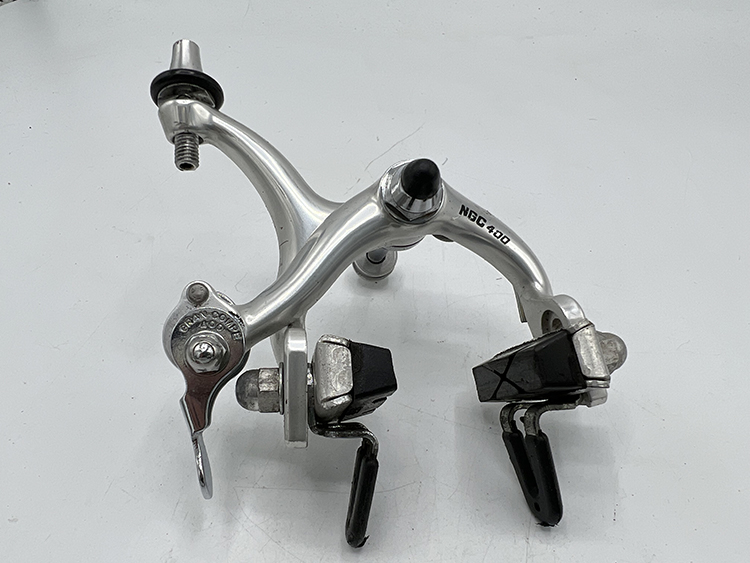

Front view

From the side.

Here's the other side.

And here's the back of the caliper.

---

Dia-Compe Gran Compe 400 recessed (incassio/allen key) brake calipers. Used, $45.00/set

Front view

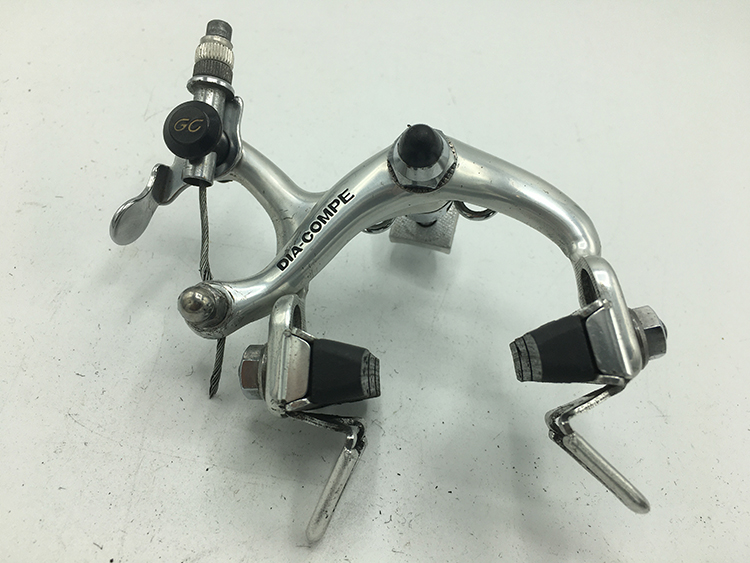

Close-up of the front caliper

The rear caliper

From behind

---

Gran Compe 400 rear caliper with nutted centerbolt. Used, $25.00/each

Front view

From the side

From the other side

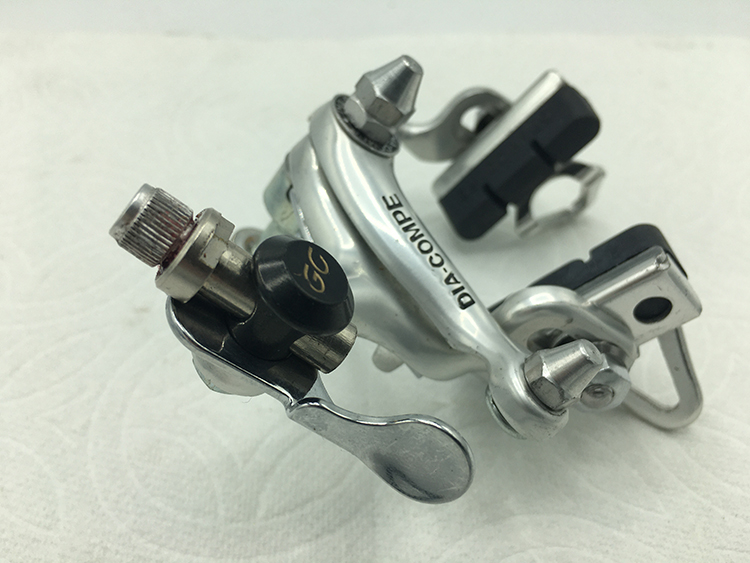

Top view

The back of the caliper

---

Dia-Compe 5000 Brake Calipers with nutted centerbolts. Used, $65.00/set

• 39mm - 49mm reach
• No longer in production

Nice looking set of stoppers

The brakes flipped over

Side view

And from the other side

---

Dia-Compe 500 G standard-reach brake caliper set. Used, $40.00/set

This caliper set has been completely re-lubed & serviced.

Serviced, lubed and ready for the road.

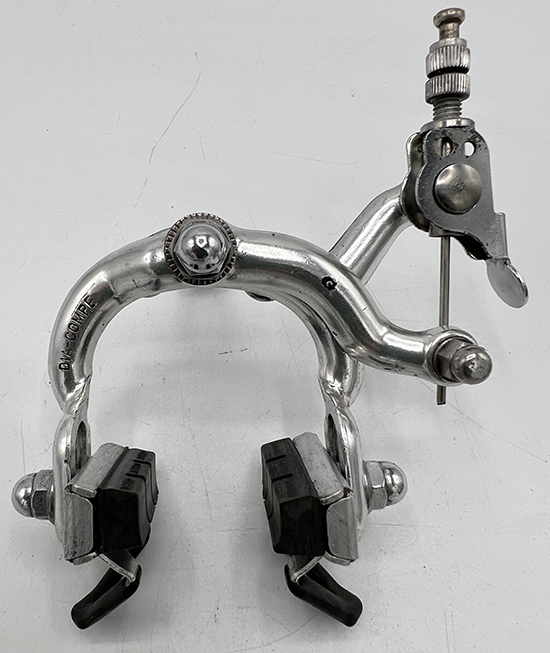

The front caliper

Side view of the front caliper

The back of the front caliper.

The rear caliper

Side view of the rear caliper

The back of the rear caliper

---

Dia-Compe NGC 982 cantilever calipers.

We have sets that are New | Lightly used

New Dia-Compe NGC 982 calipers. New, $100.00/set

This sale is for the two calipers, enough for one wheel.

Nicely finished, black anodized.

Top view

Lightly used Dia-Compe NGC 982 calipers. Used, $75.00/set

This sale is for the two calipers, enough for one wheel.

In lovely condition

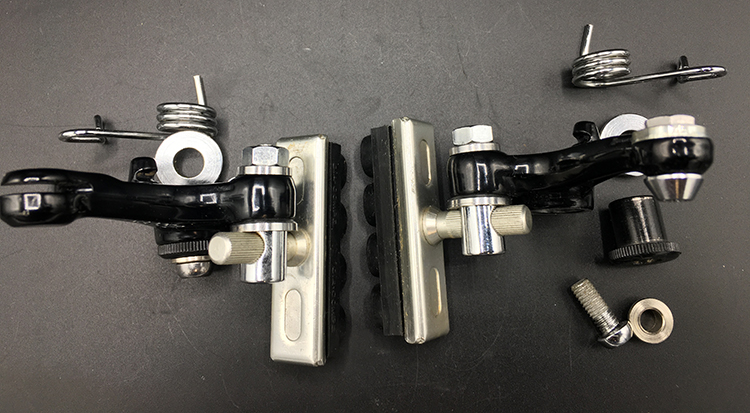

Even simple cantilever calipers have lots of parts.

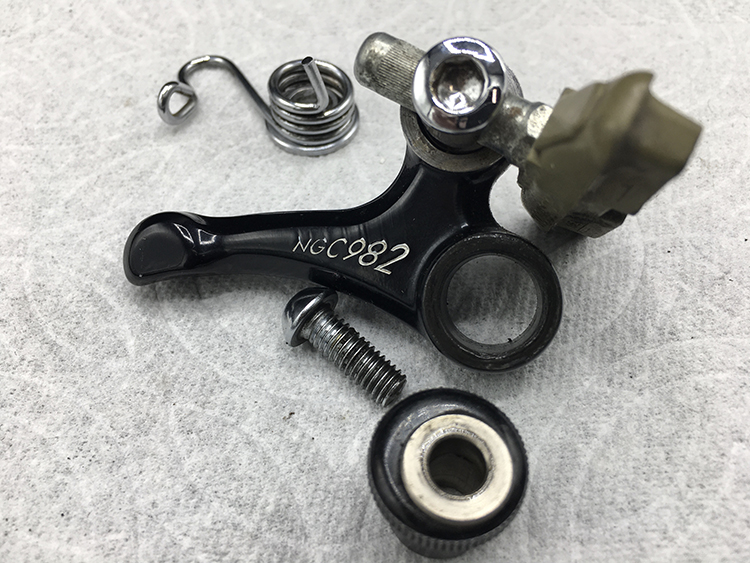

Close-up of one of the brake arms.

The same lever arm in a different state of disassembly

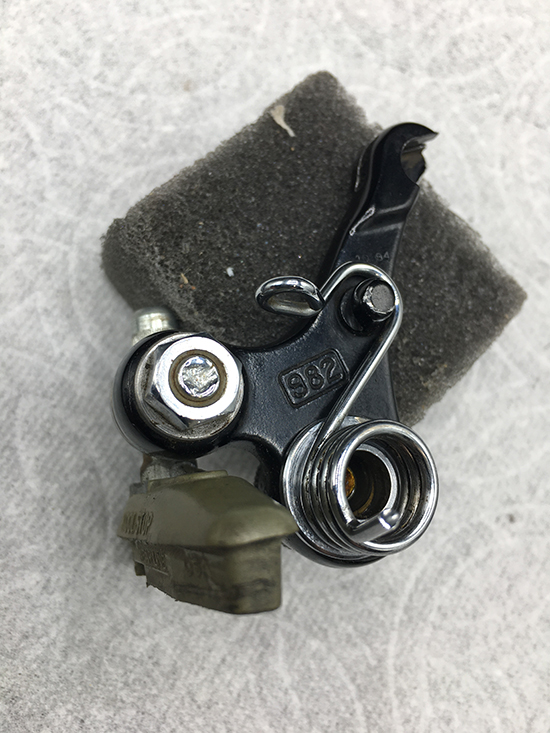

The back of the brake arm, showing it is a 982 caliper.

---

Dia-Compe 986 Titanium-colored front & rear cantilever caliper set. Used, $100.00/set of four calipers, enough for two wheels.

These aluminum calipers are titanium colored.

The caliper for one wheel.

The backs of the first set.

Here's the second set.

The back of the second set of calipers.

---

Dia-Compe 986 cantilever calipers. Lightly used, $100.00/set of front & rear calipers (enough to equip a bike)

We have two sets of front and rear calipers in stock (enough for two bikes).

Lightly used

Here's another shot of the calipers

Here's a close-up of a set.

Here's the pair turned over.

Here's a caliper partly disassembled

---

Dia-Compe 987 cantilever calipers.

We have Dia-Compe 987 cantilever calipers available both New | Lightly used

Dia-Compe 987 cantilever calipers. New, $240.00/set of front & rear calipers (enough to equip a bike)

Part# 81116

We have two sets of front and rear calipers in stock (enough for two bikes).

New, with all of their hardware

Just the calipers

Here they are from a different angle

New, in the box.

Dia-Compe 987 cantilever calipers. Lightly used, $140.00/set of front & rear calipers (enough to equip a bike)

We have two sets of front and rear calipers in stock (enough for two bikes).

For a good close-up, we just photographed the pieces you see here, which are representative of our lightly-used stock

As the pads show, they have had some mild use.

A different view.

---

Dia-Compe Blue 987 Cantilever Caliper Set for two wheels. New, $240.00/set with hardware.

Part# 81121

New, in the box.

Here's the info on the box.

---

Dia-Compe XCM cantilever caliper set. Used, $25.00/set

Produced 1989 - 1990

The set of caliper arms.

The backs of the calper arms

---

Dia-Compe XCM single cantilever caliper arm. Used, $15.00/each

Front view

The back of the caliper arm.

---

Dia-Compe front incassio (recessed allen-key) centerbolt. New, $20.00/each

Part# 82154

We have three in stock

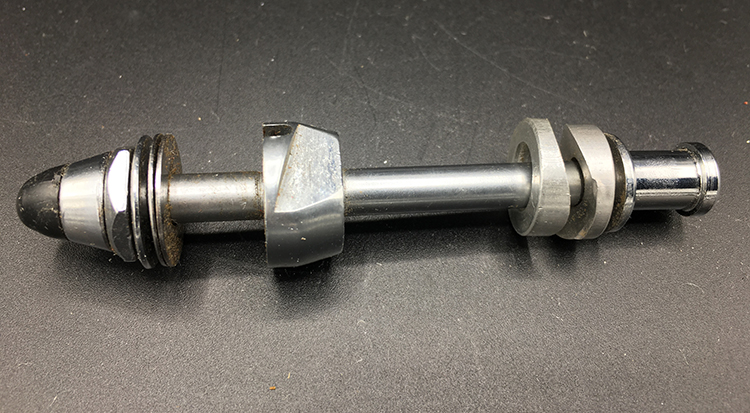

Complete with its rubber nose cone.

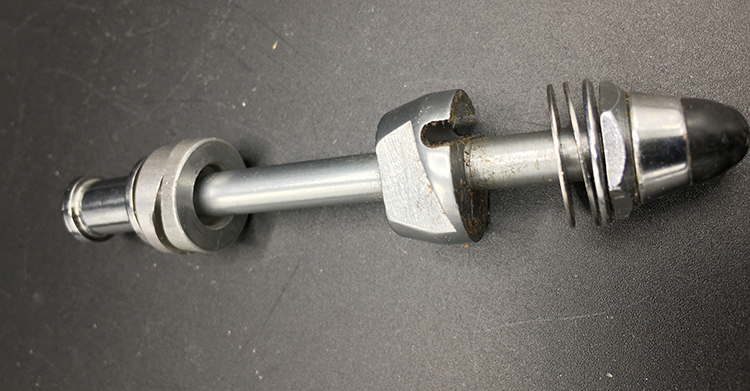

From the back

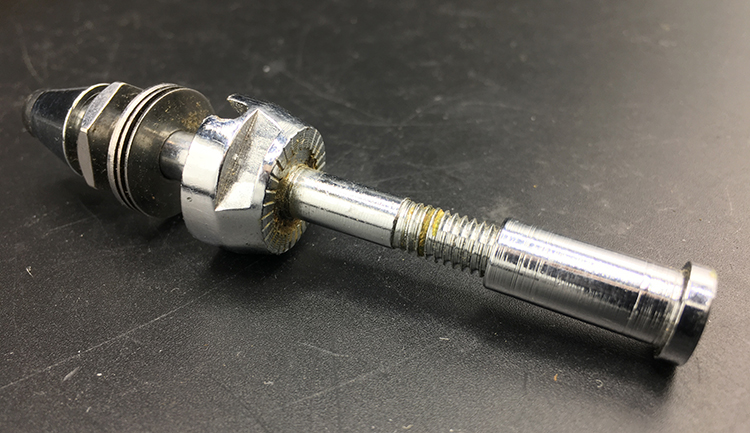

Dia-Compe varied its production slightly over the years, which is reflected in our inventory.

Here's another picture of the second design.

---

Dia-Compe rear incassio (recessed allen-key) centerbolt. New, $20.00/each

Part# 82155

We have two in stock

Rear recessed brake bolts are rather short.

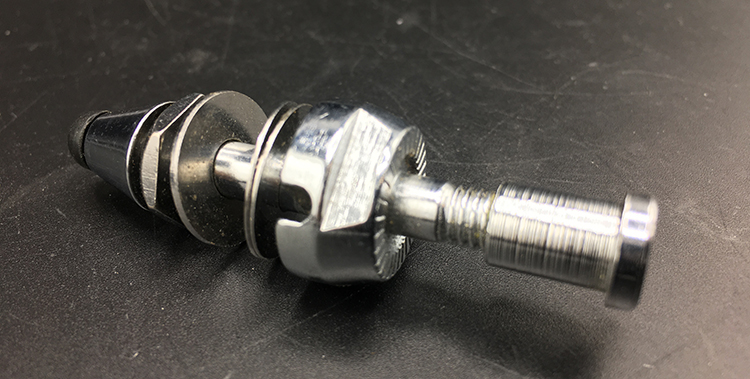

Here's just the centerbolt

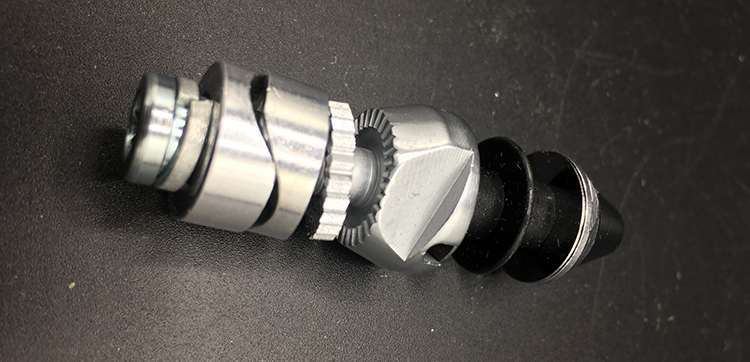

Here's the same rear centerbolt turned around

Dia-Compe varied its production over time. Here's a slightly different version of the same bolt.

Here it is turned around.

---

Dia-Compe Drop rear incassio (recessed allen-key) centerbolt. New, $50.00/each

Part# 82151

These are rare. If you have a frame that you can't quite get the pads of your rear brake low enough, here is your part.

A drop bolt can be a pearl beyond price.

Here's just the drop bolt.

From another angle

And here it is turned around.

---

Crossbow Straddle Cable Hangers. Used, $30 pair

The website Velobase.com explains: Crossbow brakes were manufactured by KK Yoshigai, aka Dia-Compe. They are a deliberate copy of the MAFAC "Driver" model of cantilever brake, and debuted in 1968. There appear to be versions of the calipers with a red plastic washer installed and versions without it.

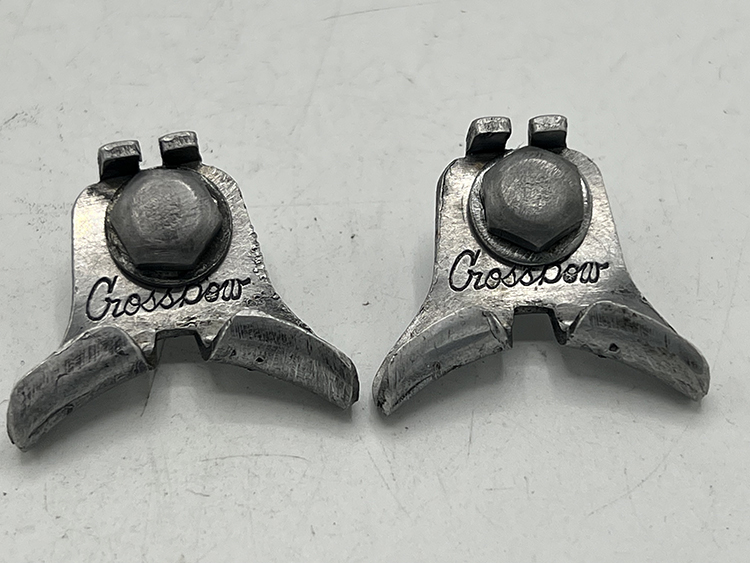

Here's the set

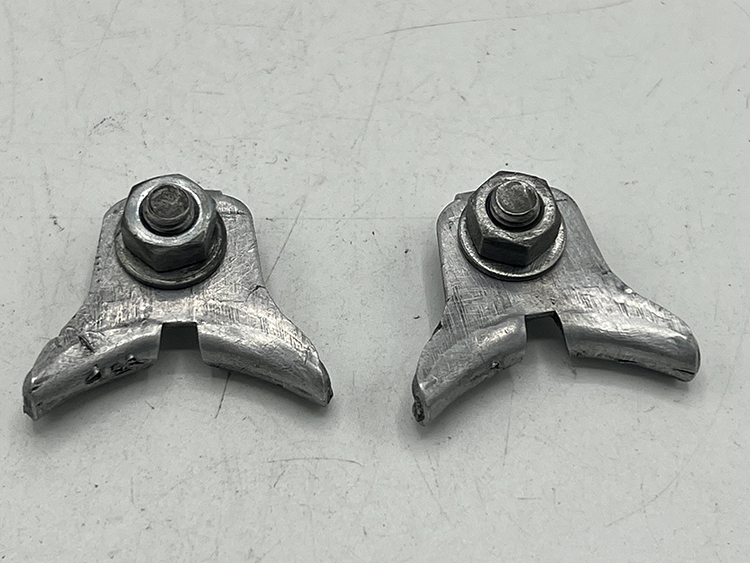

And here they are flipped over.
