Shimano cranksets

On this page: Dura-Ace AX 170mm crankset | AX DynaDrive pedal adapters for 9/16" pedals | Dura Ace 7700 172.5 crankset & 7700 Octalink BB | Deore Hollowtech 175mm crank arms | Deore LX M570 175mm triple crankset | Deore M510 Octalink 175mm triple crankset | Ultegra 170mm crankset | 600EX 6207 170mm crankset | 600 165mm crankset | 600 170mm right arm | STX 175mm crankset | 105 170mm crank arms | Exage Action 165mm right arm | Exage Motion 170mm right arm | Exage Mountain 175mm right arm | RX100 170mm new crankset | RX100 170mm used crankset | Acera 170mm triple w/22/32/42 rings

We do not have an on-line shopping cart at this time. Please call us: (503) 480-2001 or email: sscycleworks@comcast.net

---

Shimano Dura-Ace AX 170mm crankset with 42-52 chainrings. Used $199.00

Part# CK-30

• We have two sets, we've pictured one.
• This very rare crankset was part of the Dura-Ace AX aerodynamic group Shimano produced from 1981 - 1984.
• Full model name: Shimano FC-7300 Dura-Ace Crankset.
• This crankset uses a square-taper spindle. The cranks are made for Shimano's Dyna-Drive pedals, which lowered the rider, for better handling. The pedals and cranks also brought the feet closer together, making for a lower "Q" factor and better biomechanics.
• Our AX cranksets are lightly used and in wonderful condition.

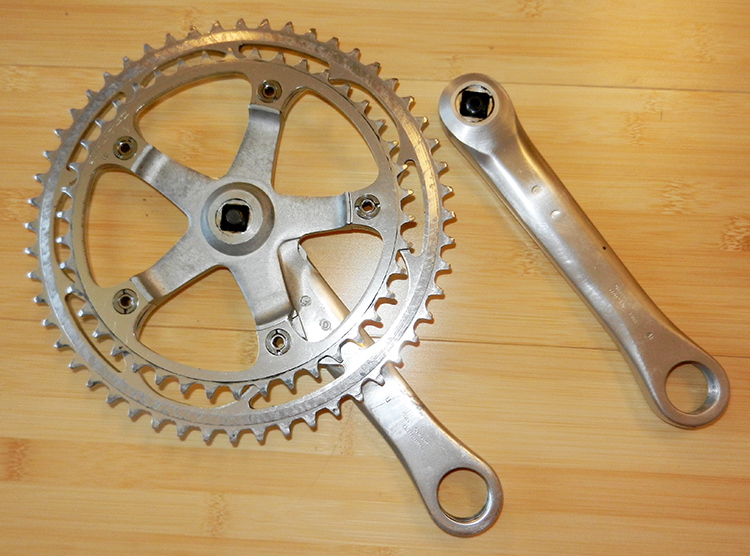

Our rare AX crankset is in great condition

The chainrings have only light wear.

---

Shimano AX DynaDrive pedal adapters to allow use of 9/16" pedals. New, $40.00/set

Part# 65253

• We have two sets in stock.
• These adapter allow the use of standard pedals with 9/16" axles on a crankset with 1" axle holes.
• These adapters are not made by Shimano.

Just screw these in and you can use standard pedals.

Another view.

---

Dura Ace 7700 172.5 crankset with 39-53 chainrings & 7700 Octalink 109.5mm British-threaded bottom bracket. Used, $175.00/crankset and bottom bracket as pictured.

Pictures of the bottom bracket are posted below the crankset pictures.

Here's the crankset

Here's just the drive side

Back of the drive side

Info stamped on the back of the arm.

Here's the left arm.

The back of the left arm.

Here's the Octalink British-threaded bottom bracket.

End view of the bottom bracket's drive side.

And here's the non-drive side

---

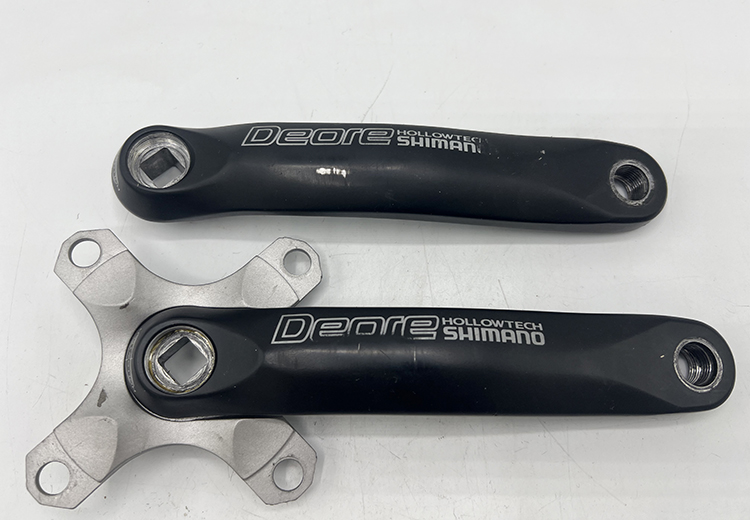

Shimano Deore Hollowtech 175mm FC-M480 Square Taper crank arms. Lightly used, $30.00/set

Made for 104/64 bcd chainrings

The hollow arms mean greater stiffness and lighter weight.

The backs of the arms

---

Shimano Deore LX M570 175mm triple crankset with 22-32-44 rings. Used, $75.00/crankset.

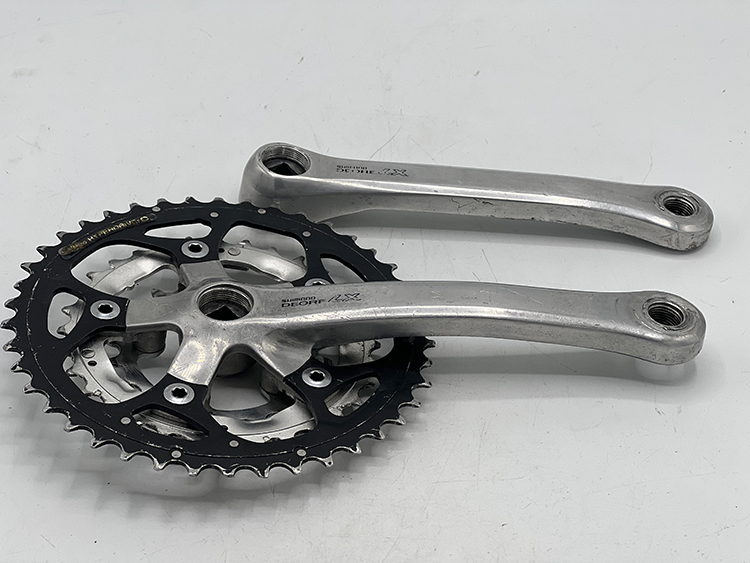

Here's the set.

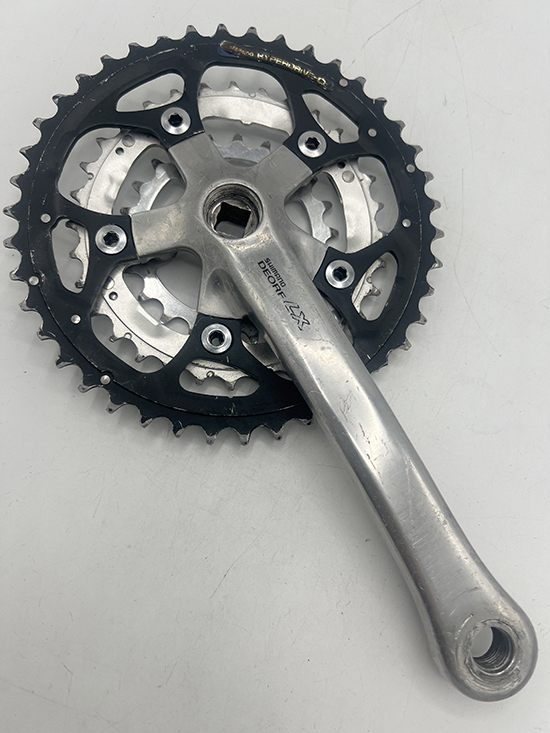

Just the right side.

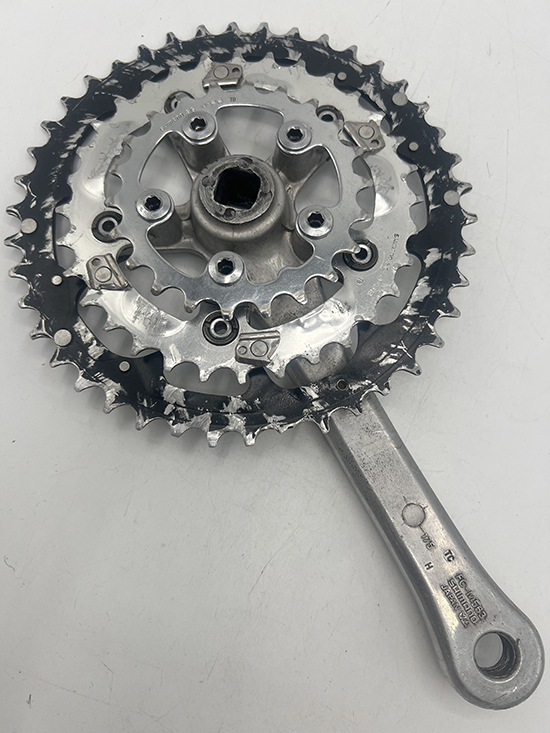

The back of the right side. Lots of pins and ramps on the chainrings to help with shifting.

Close-up.

Shimano very nicely stamped the product details on the crank arm.

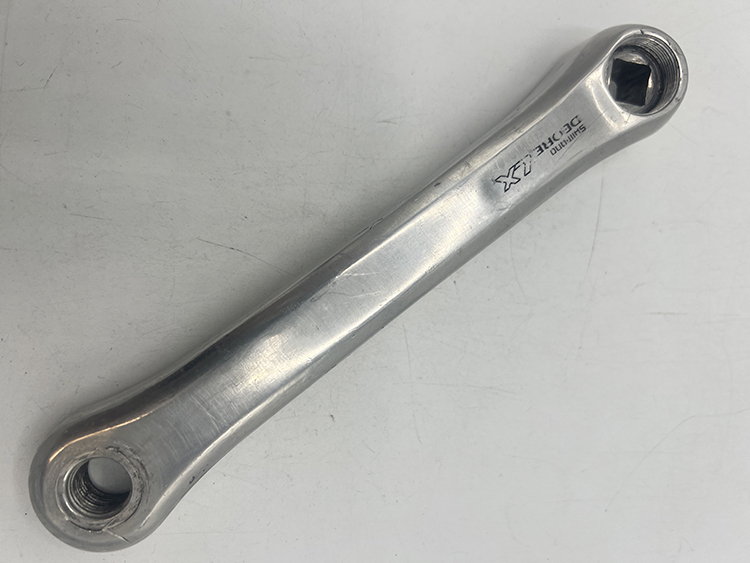

The left crank arm.

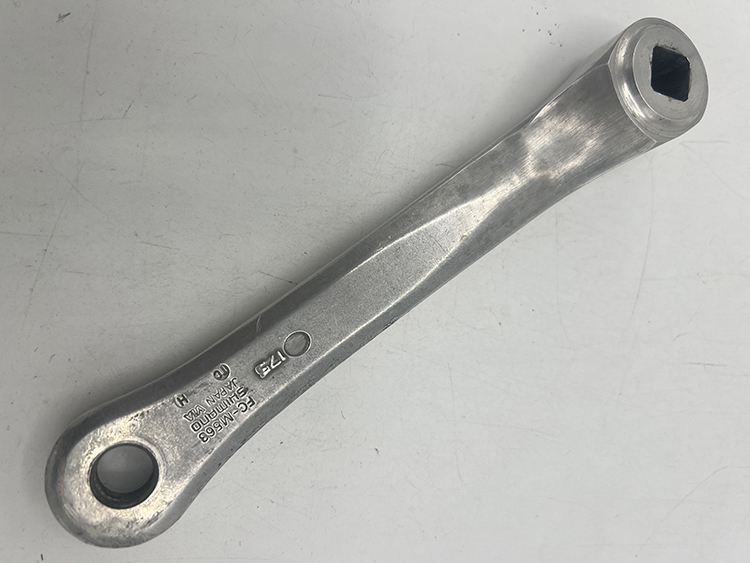

The back of the left arm

---

Shimano Deore M510 Octalink 175mm crankset with 26/38/48 chainrings. Used, $80.00/set

Shimano writes: Compared the power transfer of OCTALINK with the conventional square taper spindle, the 8-splined OCTALINK interface that connects bottom bracket and crank set increases the strength and rigidity for entire assembly.

The crankset.

The right crank

The back of the right crank

The left arm

The back of the left crank arm

---

Shimano Ultegra 170mm Octalink 6500 crankset, 42-53 rings. Used, $60.00

• Made for Octalink splined bottom backet
• 9-speed compatible
• 170mm crankarms
• 42-53 teeth

This crankset is made for the Octalink splined bottom bracket.

---

Shimano 600EX 6207 170mm crankset with 42-52 chainrings. Used, $80.00

Produced 1984 - 1987

The crankset.

The right side.

The back of the right side.

The left arm

The back of the left arm

---

Shimano 600 Arabesque 165mm crankset with 42-52 chainrings. Used $80.00

Part# CK-31

This lightly used crankset dates from the late 1970s-early 1980s. The 165 arms are great for smaller riders, riders who like to spin at high rpms, or those looking for a little more pedal clearance around corners. This crank comes with the traditional 42-52 rings.

Chainrings are 130mm bolt pattern. The cranks will accept a 39-tooth inner ring. The arms are made for square taper bottom bracket spindles and are fitted with integral allen-key fixing bolts. "Arabesque" refers to the design of the brand engraving on the cranks.

These cranks use a 116mm spindle.

---

Shimano 600 FC-6207 170mm right crank arm. Used, $25.00/each

BCD is 130mm

Design of 600 parts of this era was simple and clean.

Here's the back of the crank arm

---

Shimano STX 175mm crankset with 22/32/42 chainrings. Used, $45.00/crankset

The crankset

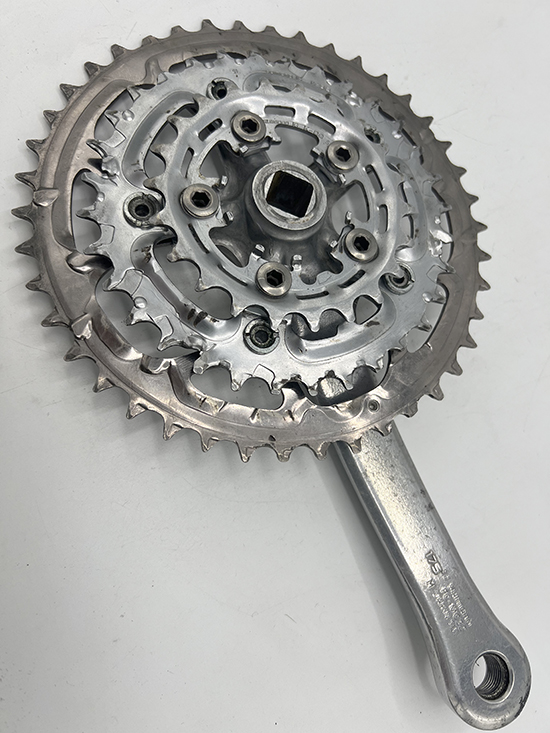

The right side

The back of the right crank. You can see all the pins and ramps on the chainrings to help shifting.

The left STX crank arm

The back of the left arm.

---

Shimano 105, 170mm crank arms. Used, $35.00

• This crankset with rings was Shimano part# FC-1050
• Produced 1986-1988
• 130mm BCD, allowing 39 inner
• Fits square taper BB.

Used, but perfectly functional

The same arms flipped over

---

Shimano Exage Action 165mm right crank arm. New, $40.00

Part# 61120

• Shimano part# FC-A350
• Takes 130mm chainrings
• Produced 1989-1990

Chainring fixing bolts are included.

and the back side

---

Shimano Exage Motion 170mm right crank arm. Used, $20.00

Part# 81121

• Shimano part# FC-A250
• Takes 130mm rings

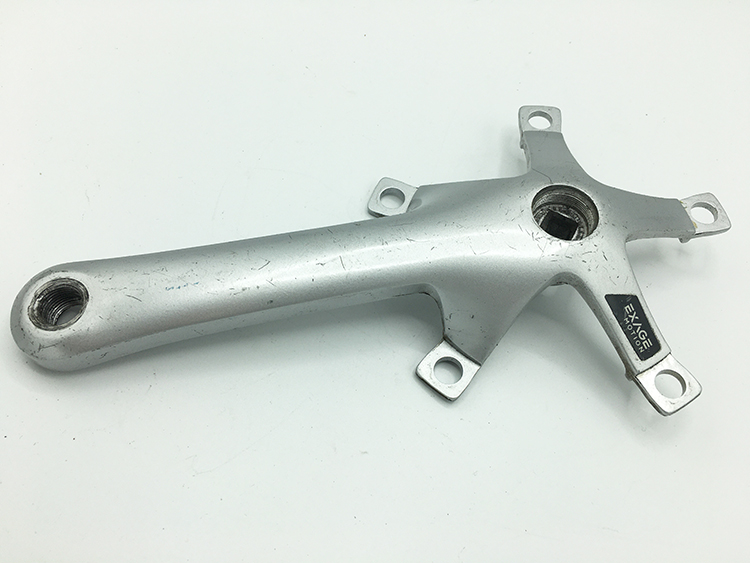

Sleek design.

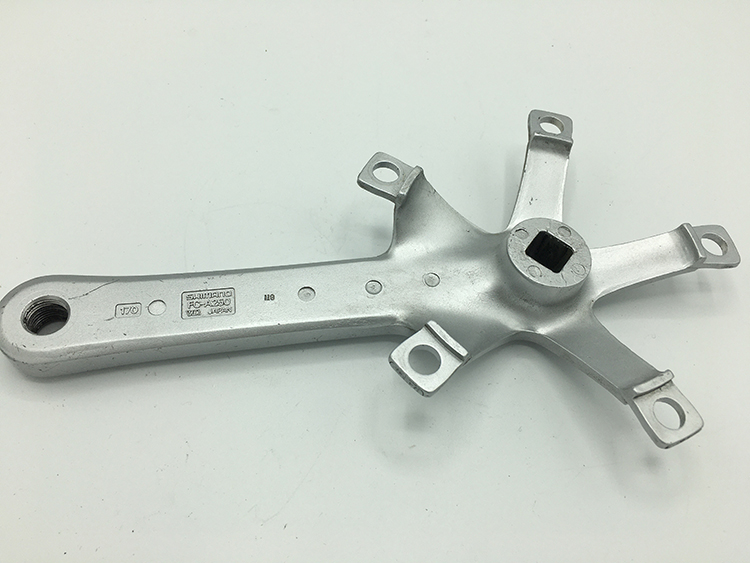

And the same arm flipped over

---

Shimano Exage Mountain FC-M450 175mm triple right crank arm. Used, $25.00

• This crank arm will mount two outer 110 BCD rings and a 74mm inner.
• Produced 1987 & 1988

We have two: Crank arm #1 | #2

Shimano Exage Mountain FC-M450 175mm triple right crank arm #1. Used, $25.00

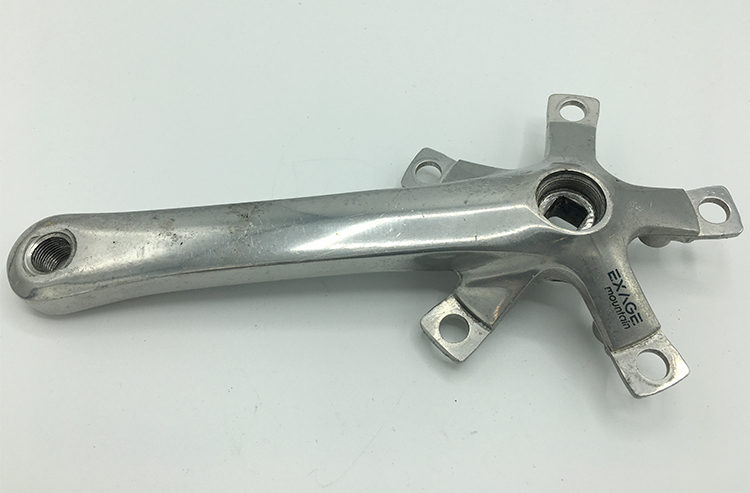

Side one.

Side two

Shimano Exage Mountain FC-M450 175mm triple right crank arm #2. Used, $25.00

Top side

And the 175mm Exage Mountain crank arm flipped over.

---

Shimano RX100 170mm crankset with 39/53 rings. New, $125.00

Part# 60124

• Shimano part# FC-A550
• Produced 1991 - 1999
• Shimano wrote this about RX100 components: Shimano RX100 was designed to provide a feeling of both style and high performance to the affordable lightweight sport bike. Featuring advanced Shimano functions like SIS, HG sprockets and SLR brakes. RX100 gives the entry level road bike the potential for performance in the Shimano tradition.

Top view

And the same RX100 crankset flipped over

---

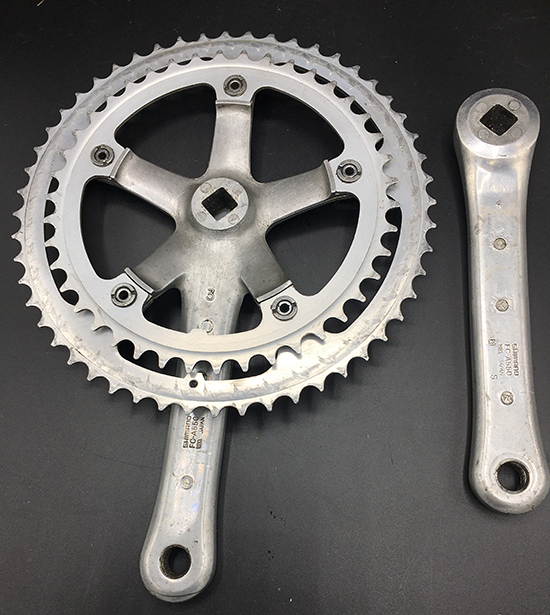

Shimano RX100 170mm crankset with 42/52 rings. Used, $45.00/each

• Produced 1991 - 1999
• Shimano wrote this about RX100 components: Shimano RX100 was designed to provide a feeling of both style and high performance to the affordable lightweight sport bike. Featuring advanced Shimano functions like SIS, HG sprockets and SLR brakes. RX100 gives the entry level road bike the potential for performance in the Shimano tradition.

Affordable and will function at a high level.

Here's the crankset flipped over.

---

Shimano Acera FC-M361 170mm triple crankset with 22/32/42 rings. New, $75.00

Part# 60078

• These cranksets feature Shimano's patented Hyperdrive system to provide quiet, easy and trouble-free shifting
• Made for Square-taper JIS spindles
• Optimal spindle length: 122.5mm
• Chainring BCD: 104/64
• The outer ring is drilled to accept a chainguard, but a chainguard is not included.
• Designed for 7 & 8-speed drivetrains.
• We have ten sets in stock

Top view. You can see all the shaping Shimano has given the chainrings to enhance shifting.

Back view

And they are new, in the box.

---
