Vintage Components - SunTour Front Derailleurs

See also: SunTour rear derailleurs | SunTour shift levers

SunTour front derailleurs on this page: Superbe Pro FD-SB00-H 31.8mm clamp-on | Original Cyclone 28.6 clamp-on | Cyclone Mk II 31.8 clamp-on | Cyclone 7000 28.6 clamp-on | Cyclone 7000 31.8 clamp-on | Lepree 28.6 clamp-on with housing stop | Lepree 28.6 clamp-on NO housing stop | GXH triple top-pull | XC Pro triple braze-on | XC-wide-range clamp-on | XC Sport triple 28.6 clamp-on | Top Pull 28.6 clamp-on | GX 31.8 clamp-on triple | Alpine Gear (AG) Tech triple 28.6mm clamp-on | MountTech | FD-TP00-GXH 31.8 clamp-on | XC Comp FD-XC01-GXH 28.6 clamp-on | XC Comp FD-XC01-GXH, 31.8 clamp-on | XC LTD 28.6mm clamp-on | XCD GX 31.8mm clamp-on triple | XCM triple 28.6mm clamp-on | XC LT#Superbe-Pro-31-8-FD-SB00D FD-XLOO-GXH, 31.8 clamp-on | SL braze-on | Triple 28.6mm clamp-on

SunTour front derailleur parts: 1st generation Cyclone derailleur extension

---

Superbe Pro FD-SB00-H 31.8mm clamp-on front derailleur. New, $80.00/each

Part# 75308

Produced 1987 - 1994

Lovely finish!

From the front. You can see "31.8" stamp on the inside of the clamp.

From behind.

Back of the derailleur

The box it comes in.

---

SunTour Original Cyclone 28.6mm clamp-on front derailleur with cable housing stop. Used

• SunTour part #FD-1300
• Produced from 1976 until the early 1980s
• This is a very early very version of this derailleur with the cable housing stop.
• It is compatible with our Cyclone derailleur extension that allows this derailleur to handle a wider range of chainrings.

We have two: #1 | #2

SunTour Original Cyclone 28.6mm clamp-on front derailleur with cable housing stop #1. Used, $80.00/each

In lovely condition

From the back.

From behind

Front view

And here's a three-quarter view.

SunTour Original Cyclone 28.6mm clamp-on front derailleur with cable housing stop #2. Very lightly used, $100.00/each

Side view. In lovely condition

The back of the derailleur

Front view

And from behind.

---

SunTour Cyclone MK II 31.8mm band clamp-on front derailleur. Used, $40.00/each

• This derailleur can be shimmed to work on a 28.6mm seat tube.
• Produced 1981 - ?
• SunTour part# FD-2300
• This derailleur will handle an 18-tooth ring difference.

A nicely finished derailleur that shifts very well.

From behind.

The back of the derailleur

And from the front

---

SunTour Cyclone 7000 28.6mm clamp-on front derailleur. Used, $40.00/each

• Produced 1987 - 1989
• SunTour part# FD-CL10-B
• Designed for double chainring cranks.

Side view

From the front.

From the back

Back of the derailleur

---

SunTour Cyclone 7000 31.8mm clamp-on front derailleur. New

Part #75315

We have two: #1 | #2

SunTour Cyclone 7000 31.8mm clamp-on front derailleur #1. New, $40.00/each

Side view

The back of the derailleur

The front of the Cyclone derailleur

And from behind

SunTour Cyclone 7000 31.8mm clamp-on front derailleur #2. New, $40.00/each

Side view

The back of the derailleur

The front of the derailleur

And from behind

---

SunTour Lepree 28.6mm clamp-on front derailleur with cable housing stop. Used, $50.00/each

• Produced mid-1980s until the late-1980s
• SunTour part# FD-3400
• Some of these derailleurs made in 1984 will have labels reading "Le Preel".
• A SunTour Lepree front derailleur is the same as a Cyclone Mark II with a different label.

Side view

The back of the derailleur

From behind

Front view

Close-up of the cable housing stop

---

SunTour Lepree 28.6mm clamp-on front derailleur WITHOUT cable housing stop. Used, $50.00/each

• Produced mid-1980s until the late-1980s
• SunTour part# FD-3400
• Some of these derailleurs made in 1984 will have lables reading "Le Preel".
• A SunTour Lepree front derailleur is the same as a Cyclone Mark II with a different label.

Side view

The back of the derailleur. The derailleur body is threaded to accept a cable housing stop, but most bikes simply don't need one.

From behind

Front view

---

SunTour FD TPOO GXH top-pull 28.6 clamp-on triple front derailleur. New old stock, $50.00

• This derailleur is made for 8-speed drive trains with a triple crankset.
• We believe it dates from the late-1980s.

New, in the box. Top pull, 28.6 clamp-on.

---

SunTour XC Pro triple braze-on front derailleur. New

We have two: #1 | #2

SunTour XC Pro triple braze-on front derailleur #1. New, $150.00/each

Part# 75096-1

Side view

The back of the derailleur

Close up of the maker's stamp, showing it is made in Japan.

Top view

SunTour XC Pro triple braze-on front derailleur #2. New, $150.00/each

Part# 75096-2

SunTour part# FD-BR01-GXB

Side view

The back of the derailleur

The manufacturer's stamp, showing this is a derailleur made in Japan,

The frame mount

Info from the packaging

---

SunTour XC wide-range clamp-on front derailleur. Used

We have two: #1 | #2

SunTour XC wide-range clamp-on front derailleur #1. Used, $50.00

Side view.

Front view

The back of the derailleur

From behind.

SunTour XC wide-range clamp-on front derailleur #2. Used, $50.00

---

SunTour XC Sport triple bottom-pull 28.6mm clamp-on front derailleur. Used, $35.00/each

Side view

The back of the derailleur

front view

And from behind

---

SunTour Top Pull 28.6mm clamp-on front derailleur. Used, $30.00/each

• This derailleur is bottom-swing.

Side view

Here's the back of the derailleur

Front view close-up

And from behind.

---

SunTour GX 31.8mm clamp-on triple front derailleur.

31.8mm clamp-on

We have two: #1 new | #2 used

SunTour GX 31.8mm clamp-on triple front derailleur #1. New, $35.00/each

Classic, clean SunTour design

From the back

SunTour GX 31.8mm clamp-on triple front derailleur #2. Used, $30.00/each

Side view

The back of the derailleur

Front view

And from behind

---

SunTour Alpine Gear (AG) Tech triple 28.6mm clamp-on front derailleur. Used, $30.00/each

Produced in the 1980s for those who need a gear low enough to pull out tree stumps with their bikes.

Side view

The back of the derailleur

From the front

And from behind

---

SunTour MounTech clamp-on front derailleur. Used

• SunTour part# FD-2700
• This is version 1 (V1) of the Mountech
• Produced from the early to the mid-1980s
• 28.6mm clamp-on
• Made for a triple front crankset

We have two: #1 | #2

SunTour MounTech clamp-on front derailleur #1. Used, $40.00

This will handle a 20-tooth chainring difference.

And from the back

SunTour MounTech clamp-on front derailleur #2. Used, $50.00

It's a SunTour derailleur, so of course it works well.

From the back. The inside of the cage shows wear.

From behind.

---

SunTour FD-TP00-GXH 31.8mm clamp-on, top-pull front derailleur. New, $50.00/each

Part# 75316

We have three in stock.

A nice-looking derailleur that reminds you that it is, indeed, top pull.

Front view

The back of the derailleur

From behind

And it is new, in the box.

---

SunTour XC Comp FD-XC01-GXH 28.6mm clamp-on front derailleur. New, $100.00/each

Part# 75094

Being SunTour, it's brilliantly designed and beautifully finished

Front view

From behind

The back of the derailleur

Nice and new and in its factory box

---

SunTour XC Comp FD-XC01-GXH 31.8mm clamp-on front derailleur. New, $100.00/each

Part# 75093

We have two in stock

Side view

From the front

From behind

The back of the derailleur

The basic info.

---

SunTour XC LTD 28.6mm triple clamp-on front derailleur. Very lightly used, $65.00/each

Side view

The back of the derailleur

Front view

And from behind

---

SunTour XC LTD FD-XLOO-GXH, 31.8mm clamp-on front derailleur. New, $75.00/each

Part# 75104

Side view

From the front

From behind

The back of the derailleur

New, in its unfancy plain brown box.

The side of the box.

---

SunTour XCD 4050 GX 31.8mm clamp-on triple front derailleur. Used, $35.00/each

Side view

The back of the derailleur

The front of the derailleur

And from behind

---

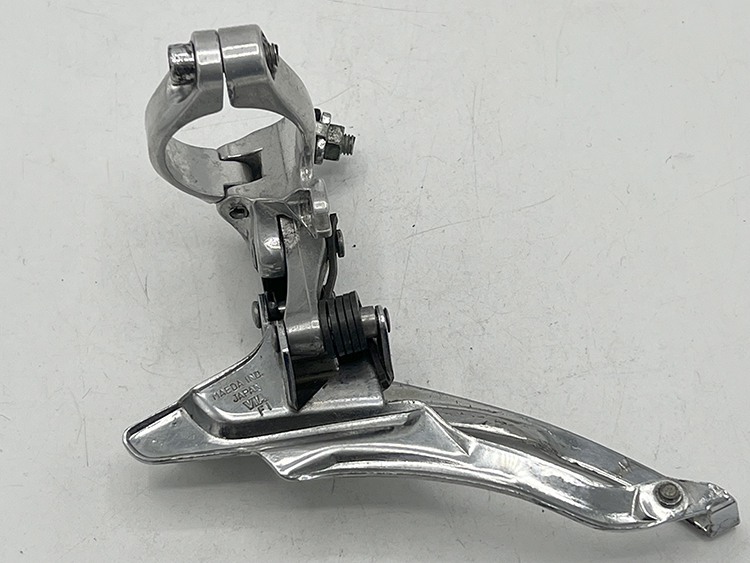

SunTour XCM triple 28.6mm clamp-on front derailleur.

• Produced 1989 - 1990

We have two: #1 | #2

SunTour XCM triple 28.6mm clamp-on front derailleur #1. Used, $25.00/each

Side view.

The back of the derailleur

From behind

Close-up front view

SunTour XCM triple 28.6mm clamp-on front derailleur #2. Used, $30.00/each

Side view

The back of the derailleur

Front view

And from behind

---

SunTour SL braze-on front derailleur. New, $65.00/each

Part# 75082

• We have two in stock
• Produced 1991 - 1994

This is a wonderfully adjustable derailleur, made like no other derailleur we have seen. The portion of the derailleur body that bolts to the bicycle frame's braze-on tab is a separate part from the derailleur body itself. Once the derailleur is fixed to the bike, a hard-to-see (in our pictures) bolt at the top of the body can be loosened and the derailleur's angle can be easily and precisely set. Please look at pictures two and three to see what we mean.

Side view

Front view. The part of the derailleur body that bolts to the frame has notches on its top to allow it to be firmly set in place. The top of the bolt that secures it can be seen.

Back of the derailleur. It's easier to see the two independent parts of the derailleur body in this picture.

---

SunTour triple 28.6mm clamp-on bottom-pull, bottom swing derailleur. Used, $25.00/each

Side view.

The back of the derailleur

From behind

Close-up front view

---

SunTour 1st generation Cyclone derailleur extension. New, $45.00/each

This rare piece gives a derailleur the ability to handle a wider chainring size range. It was made for first-generation Cyclone front derailleurs and we do not know if it will work on later Cyclone models.

Side one.

And here is the other side of the extension.

---
