Shimano quill & platform pedals: Adamas AX | Deore AX | PD-100 platform | PD-T100 platform
Shimano clipless pedals: Shimano SPD-SL R540 | Deore M424 SPD | PD M515 SPD | Deore PD-M520 SPD | Deore M-525 SPD | PD-M535 SPD | M540 SPD | PD-M545 SPD | DX PD-M636 SPD | Deore XT M737 SPD | SPD-compatible pedals
Shimano pedal cleats are posted here.
Shimano Aero pedals are posted here.
We don't have an on-line shopping cart. If you see something that interests you or if you have a question, please call us at (503) 480-2001.
Shimano Adamas AX pedal set. Used, $55.00
- A rare pedal, produced in 1982-83
- Shimano part# PD-AD10
- Made for touring-minded riders
9/16" pedal axles
Pedal bottoms
Shimano Deore AX (Dyna-Drive) pedals. used $90.00
Part# PD-70
During the 1980s Shimano was a fearless innovator and marketer. The company was devoted to increasing rider efficiency and stability. One results was the AX component series. The pedals had a very short axle. That change allowed Shimano to lower the pedal platform. The rider could then use a smaller frame and have a lower profile. He was more stable and enjoyed lower wind resistance.
The pedals used a big 1" x 24 tpi axle and required a special crankset that accepted the larger diameter pedal axle. The market did not embrace this innovation and Shimano discontinued the design around 1983.
The Deore group was made 1980-1983 and was specifically designed for touring.
Top view. The right pedal does not have a reflector.
Bottom view
The left pedal does not have its outboard bearing seal.
What's old is new again. Here's a 1900 ad for a lowered platform pedal.
Shimano PD-100 Platform Pedals with half clip. Used, $40.00
- We believe these were produced in the mid to late 1980s.
- These are great pedals for kids on a child stoker kit on a tandem. With smaller feet growing quickly, few folks indulge in true cycling shoes. With these pedals, street shoes are given a broad platform to disperse the pressure of the pedal cage.

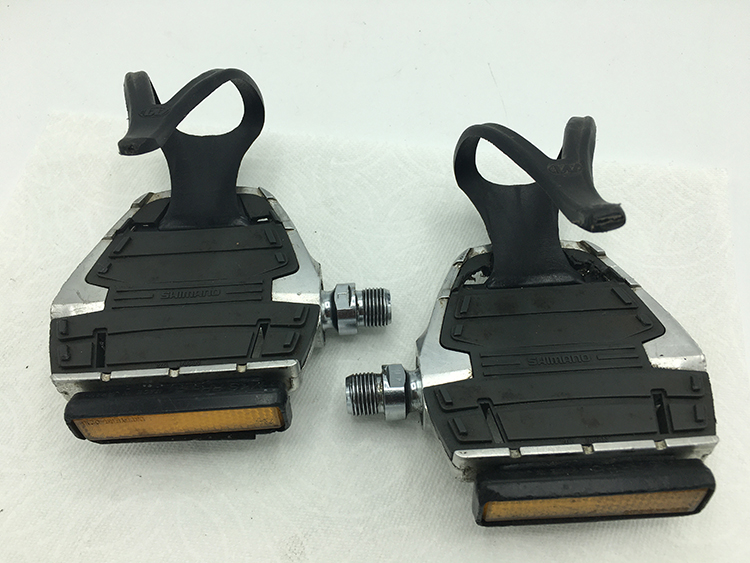

In terrific condition

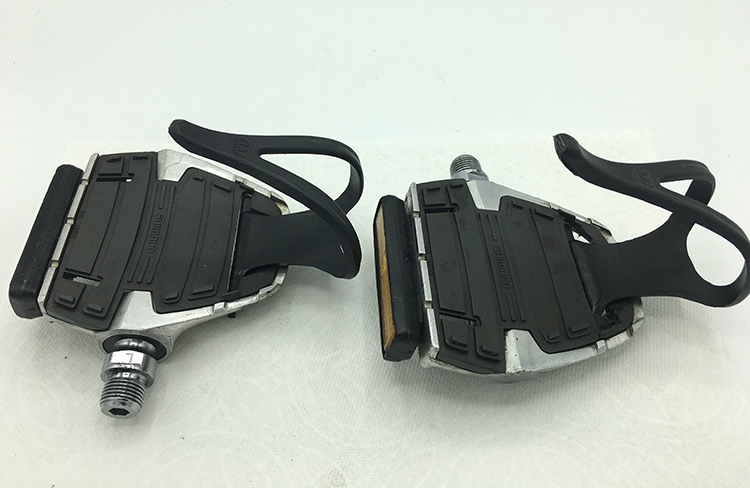

The same pedals flipped around

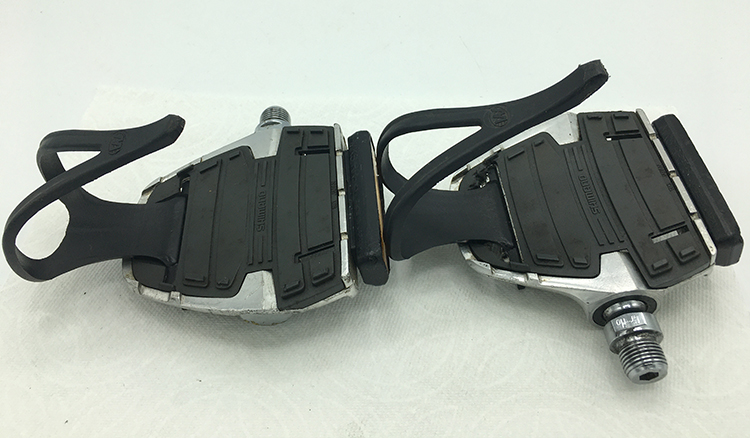

From behind
And here are the pedals' undersides.
Shimano PD-T100 Platform Pedals with Toe Clips & Straps. Used
We believe these were produced in the late 1980s
Shimano PD-T100 Platform Pedals with Toe Clips & Straps set #1. Used, $45.00
With clips and straps, ready to ride.
Side view
The same pedals flipped around

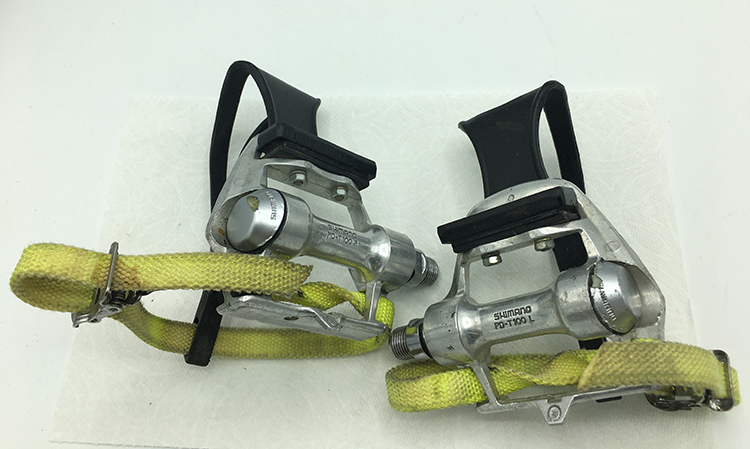

The pedals bottoms
Shimano PD-T100 Platform Pedals with Toe Clips & Straps set #2. Used, $45.00
From behind

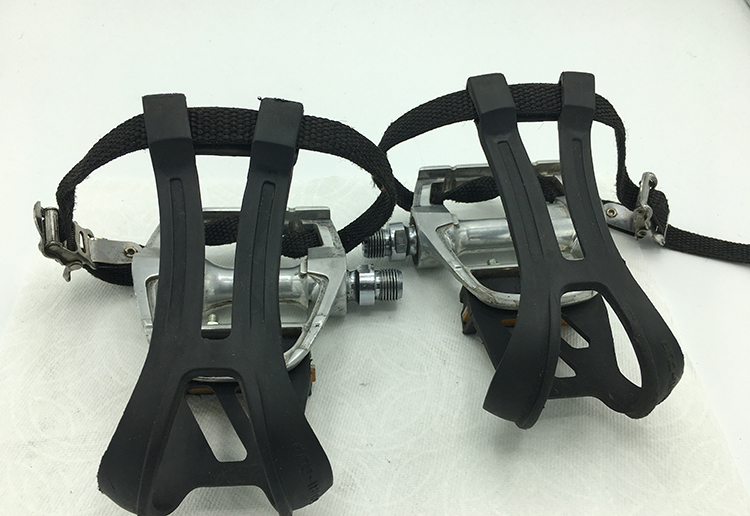

Front view

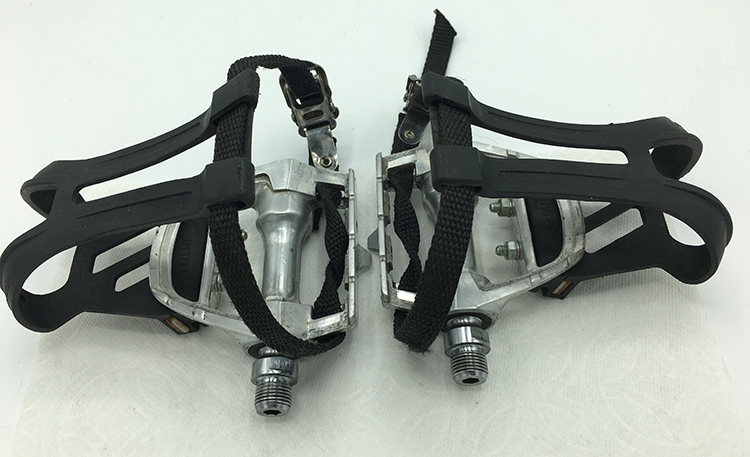

Side view

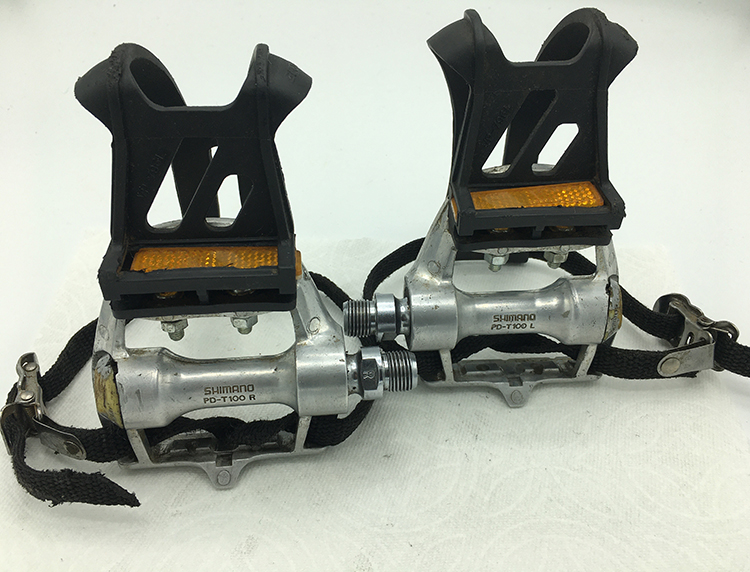

And the pedal bottoms
Shimano SPD-SL R540 pedals. Used, $50.00
- These pedals used the Shimano SP-SL cleat, which look a lot like the Look Delta cleat, but it is NOT interchangeable with Look.
- The pedal body is aluminum and the axle is chromoly steel.
- Cleat release tension is adjustable
- Cleats not included
Shimano said this about these pedals: "Bring race-proven performance home with the Shimano PD-R540 pedal. Featuring the same stable cleat platform, low stack height, and cornering clearance that you'll find on the Dura Ace and Ultegra pedals from Shimano, the PD-R540 offers high end performance at a reasonable price.
"The Shimano R540 SPD-SL feature design proves in Pro Tour racing as well for the daily commuter. The extra-wide platforms, wide bearing placements, adjustable entry bindings and low profile designs transfers your power directly to the pedals.
"Connecting to your bike like never before with the SPD-SL interface. SPD-SL pedals guarantee a reliable and efficient connection between you and the bike. A wide platform offers maximum power transfer and comfort.
"The adjustable tension design is there for the rider's comfort of clipping in and out of the pedal with complete confidence and ease. Release is as simple and straightforward as always, just twist in or out, and the tension adjustment offers an impressively broad range."
Shimano Deore M424 SPD pedals. Used, $25.00
We have two pair: with resin outer cage | without resin cage
Deore M424 pedals with resin outer cage. Used, $25.00
- Chromoly spindle, resin cage
- Adjustable cleat tension
- "Pop-up” mechanism tilts the binding at a 12.5º angle for easy and fast entry
Moderately used
Another view
Deore M424 pedals without resin outer cage. Used, $25.00
- Adjustable cleat tension
- "Pop-up” mechanism tilts the binding at a 12.5º angle for easy and fast entry
Shimano PD-M515 SPD clipless pedals. Used, $20.00
Here's an inexpensive, used pair to get you riding.
Shimano Deore PD-M520 SPD pedals. Used
We have three sets: #1 | #2 | #3 | a single left 520 | one suitable for parts
- Compact body design with open binding for easy-entry
- Better mud and debris shedding than any pedal in its class
- Customize the entry and release tension settings
- Chrome-moly spindle and low-maintenance sealed bearing cartridge axle
Deore PD-M520 pedal set #1. Used, $25.00
Deore PD-M520 pedal set #2. Used, $25.00
Deore PD-M520 pedal set #3. Used, $25.00
Deore PD-M520 left pedal. Used, $10.00
Just need a left? Here it is.
Deore PD-M520 used pedal suitable for parts. Use, $10.00
Shimano Deore M-525 SPD pedals. Used, $30.00
- Double-sided
- Marketed by Shimano for use with Deore DX & LX groups
- Pedal body is cast aluminum
- Spindle is forged chromoly steel
Shimano PD-M535 SPD pedals. Used
- Double-sided
We have three pair: #1 | #2 | #3
Shimano PD-M535 SPD pedal set #1. Used, $30.00
Shimano PD-M535 SPD pedal set #2. Used, $30.00
Shimano PD-M535 SPD pedal set #3. Used, $30.00
Shimano M540 SPD pedals. Used, $35.00
- Double-sided
- Chromoly spindles
- Aluminum body
- Sealed cartridge bearings
- Adjustable tension
- Requires 8mm Allen key for installation
Shimano PD-M545 SPD pedals. Used, $45.00
- Chromoly steel axle
- Sealed cartridge bearings
- 5 degrees of float
- Large alloy cages for non-cleated shoes
- Adjustable cleat tension
These pedals work for cleated or uncleated shoes.
Shimano DX PD-M636 SPD pedals. Used, $50.00
We have three pair: #1 | #2 | #3
DX PD-M636 black pedal set, #1. Used, $50.00
DX PD-M636 grey pedal set, #2. Used, $50.00
DX PD-M636 red pedal set, #3. Used, $50.00
Shimano Deore XT M737 SPD pedals. Used, $50.00
- Double-sided
They are used, but they have a lot of fun left in them.
Another view
SPD-compatible pedals. Used, $30.00
- These will get you on the road without breaking the bank.
- Cleats not included.
- Chromoly spindle
- Cleat tension adjustment on back of pedal
- We don't know who made these, but since they are SPD compatible, the Shimano pedal page seemed the right home for them.
