Components - Campagnolo Ergopower shift lever spare parts & cables

Ergopower lever hoods are posted here

Ergopower bodies: 10-speed right Ergopower body with internal parts | 10-speed right Ergopower body only | 10-speed left Ergopower body with internal parts | 8-speed Record right carbon '95-'96 Ergo body | Athena '96 right Ergo body | Athena '96 left Ergo body | '94 Athena/Veloce right Ergo body assembly | Veloce '95 left (front) body

Ergopower shift and brake lever arms & buttons and pivots: '94 & earlier Ergo right shift lever arm | '95 Ergo right shift lever arm | '95 Veloce Ergopower left shift lever arm | 1996-99 Ergo right shift lever arm | 1999-06 Ergo right shift lever arm | Right downshift thumb button | Left downshift thumb button | Left (front) downshifter thumb button | Record 1st Generation right brake lever arm | 1997 Record right brake lever arm | Centaur right brake lever arm | Veloce 9-speed brake lever arm | Mirage right resin brake lever arm | Mirage aluminum brake lever arm | Mirage 8-speed aluminum brake lever arm | Stratos 8-speed brake lever arm | Brake lever pivot pin

Ergopower shifter parts on this page: Ergo right return spring | Ergo left return spring | Ergo right springs | Ergo left springs | Ergo left spring bushing | Spring Coiling Bushing | Record Ergo 2004-09 left spring carrier | Ergo 92-97 right index spring carrier | Ergo 98-06 right index spring carrier | Ergo 92 -06 left index spring carrier | Ergo Right Finger Shifter Return Spring | Ergo Left Finger Shifter Return Spring | Record/Chrous Ergo bearings | Ergo lever rubber stop | Record Ergo pivot shaft | Pivot shaft left-hand threaded bolt | Lever backing plate, EC-RE024

Ergopower internal ratchets: Top left ratchet | 8-speed right ratchet | 8-speed right & left ratchets used | 9-speed '97-'98 right ratchet | 9-speed non-recessed right ratchet | 9-speed '98-current right ratchet | Left ratchet-RE-114 | 1997-03 left ratchet | 1998-Current left ratchet | 9-speed '99-'01 right ratchet | 9-speed right lever top ratchet ring | 10-speed right ratchet

Ergopower clamps and bands: Ergo handlebar clamp band | 1996-98 Record Ergo clamp & bolt | 1994-97 clamp & bolt

Ergopower cables & ferrules: Ergopower cables and housing kit | Ergo brake wire | Ergo shift cable | 1st Generation right Ergopower body shifter cable ferrule | Step-down ferrule | Ergo inline barrel adjuster

Campagnolo Ergopower levers are posted here

We don't have an on-line shopping cart. If you see something that interests you or if you have a question, please call us: (503) 480-2001 or email: sscycleworks@comcast.net

Campagnolo Ergopower levers are an integrated lever system that allows the rider to shift or brake without removing his hands from the bars. They were introduced in 1992 after Shimano's equivalent, STI, proved to be wildly popular.

Campagnolo Ergopower levers make for a neat, clean cockpit area because both the gear and brake cables are hidden under the handlebar tape.

Here's an exploded drawing of a 1992-93 Ergo lever.

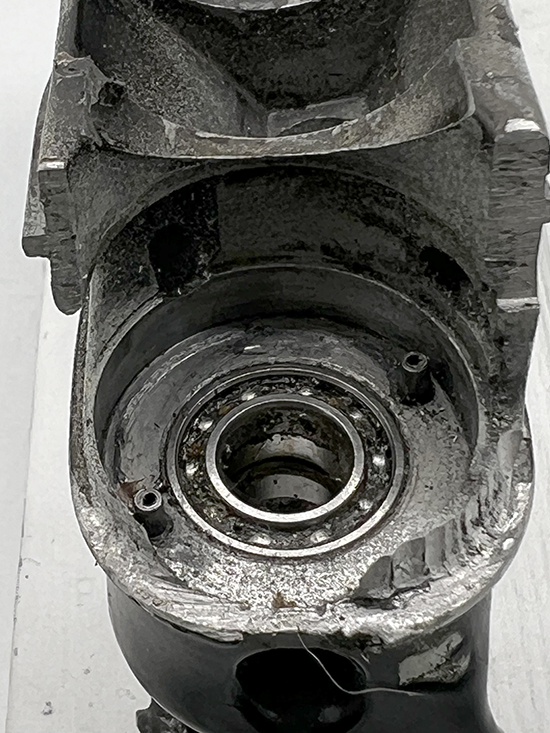

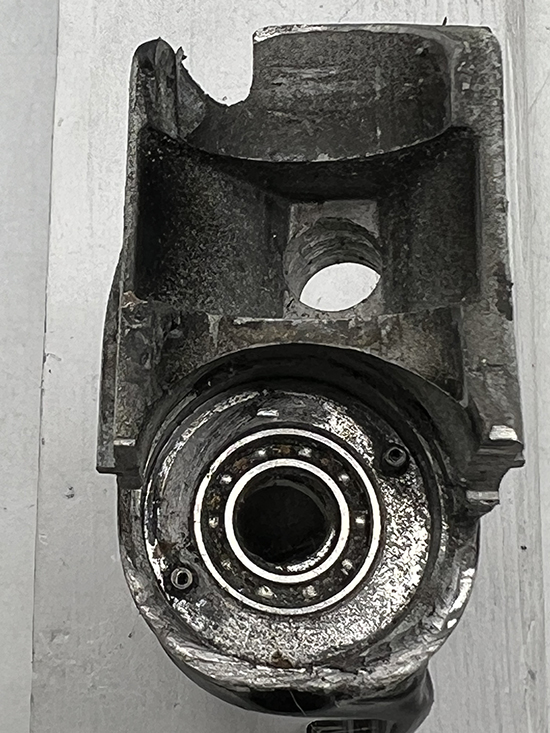

While working on a 1992 Ergo shifter, we took a picture of its carrier bed. The early ergoshifters had the G-springs and carrier upside down and backwards from the latter productions. The carrier is no longer offered and the current one has to be modified to fit these older shifters. This is a photo of a shifter body that cracked, and attempting to pry the carrier out resulted in more damage. A bearing puller is much more effective in removing the carrier from older ergoshifters like this.

---

10-speed right Ergopower body with internal parts. New, $115.00/each

Part# 70389

Side view

From the front

Here's the other side

Top view

And it is new, in the box.

---

10-speed right Ergopower body only. New, $65.00/each

Part# 70427

• We have two in stock
• Campagnolo part# EC-RE631
• This lever body does not have internal parts except for bearings.

New, in the box.

Product info on the side of the box.

Here's the shifter body.

The shifter body from the other side.

Front view

Looking in the lever body you can see the bearing.

And from the front, with the lever body lifted to show its internals.

---

10-speed left Ergopower body with internal parts. New, $115.00/each

Part# 70430

• This is the Ergo body with its internal parts, but without the clamp for the bar nor the brake lever.
• Campagnolo part# RE201
• We have two in stock.

New, in the box

Here's the lever body.

---

8-speed Record right (rear) carbon 1995-96 Ergopower body. New, $80.00

• Campagnolo part# CAEC-RE031
• We have three in stock

Front view

Side view

And the other side

---

Athena 1996 right (rear) carbon Ergopower body. New, $35.00

• Campagnolo part# CAEC-AT131
• We have two in stock
• Made for small bushings

Top view

Side view

---

Athena 1996 left (front) carbon Ergopower body. New, $35.00

• Campagnolo part# CAEC-AT132
• We have two in stock
• Made for small bushings

Note: This is the model made for small bushings

Side view

And the other side

---

1994 Athena/Veloce right (front) Ergopower body assembly. New, $50.00

• Campagnolo part# LEC-AT004
• We have three in stock

Side view, showing some of the lever's machinery.

Front view

And the other side

---

Veloce 1995 left (front) Ergopower body. New, $35.00

Campagnolo part# CAEC-VL032

Side view

The other side

And from the front

---

1994 & earlier Ergopower right shift lever arm. New, $80.00

Part# 70401-03

• Campagnolo part# RE020
• We have two in stock.

Here's one of them

Here's a good side view.

The other side

Front view

And from behind.

---

1995 Ergopower right shifter lever arm. New, $80.00

Part# 70401-02

• Campagnolo part# RE028-128
• We have two in stock

---

1995 Veloce Ergopower left shift lever arm. New, $45.00

Part# 70416

Campagnolo part# EC-VL029

---

1996 - 99 Ergopower right shift lever arm. New, $100.00

Part# 70401

---

1999-06 Ergopower right shift lever arm. New, $100.00

Part# 70400

---

Ergopower right downshift thumb lever. New, $35.00

Part# 70415

• Campagnolo part# CAEC-RE104
• We have one in stock.

---

Ergopower left thumb button. New, $35.00

---

Ergopower left (front) downshifter thumb button. New, $35.00

Part# 70412

• Campagnolo part# CAEC-RE005
• We have one in stock.
• Fits ’94- 97 Record/Chorus ’94-98 Athena, Veloce, Mirage, Avanti

---

Campagnolo Record 1st Generation Ergopower right brake lever arm. Used, $50.00

Front view

Side view

From the other side

Back view

---

Campagnolo 1997 Record Titanium Group 9-speed right brake lever arm. Used, $60.00/each

Campagnolo part# EC-RE247

Front view

Side view

The other side of the lever

Back of the lever arm.

---

Campagnolo Centaur Ergopower right brake lever arm. Used, $35.00

Nicely finished

And here's the other side

Front view

---

Campagnolo 9-Speed Veloce Ergopower brake lever arm. Used, $35.00

Front view

A better view of the lever's side

And the other side

---

Campagnolo Mirage Ergopower right resin brake lever arm. Used, $35.00

We have two in stock: #1 | #2

Campagnolo Mirage Ergopower right resin brake lever arm #1. Used, $35.00

Front view

Side view

Campagnolo Mirage Ergopower right resin brake lever arm #2. Used, $35.00

From the front

And a side view

---

Campagnolo Mirage Ergopower aluminum brake lever arm. Used, $35.00

We have two in stock: #1 | #2

Campagnolo Mirage Ergopower aluminum brake lever arm #1. Used, $35.00

Front view

Side view

And the other side

Campagnolo Mirage Ergopower aluminum brake lever arm #2. Used, $35.00

Front view

Side view

And the other side

---

Campagnolo Mirage 8-speed Ergopower aluminum brake lever arm. Used, $35.00

We have three in stock: #1 | #2 | #3

Campagnolo Mirage 8-speed Ergopower aluminum brake lever arm #1. Used, $35.00

View 1

Head-on view

Campagnolo Mirage 8-speed Ergopower aluminum brake lever arm #2. Used, $35.00

Front view

Side view

The other side

Campagnolo Mirage 8-speed Ergopower aluminum brake lever arm #3. Used, $35.00

From the front

From the side

And the same lever flipped around

---

Campagnolo Stratos 8-speed Ergopower brake lever arm. Used, $35.00

Front view

From the side

And the other side

---

Campagnolo Ergopower brake lever pivot pin. New, $10.00

Part# 70414

• Campagnolo part# EC-RE246
• We have six in stock

---

Campagnolo Ergopower right index return spring. New, $15.00

Part# 70409

• Campagnolo part# EC-RE137
• We have 9 in stock

---

Campagnolo Ergopower left index return spring. New, $15.00

Part# 70418

• Campagnolo part# EC-RE138

---

Campagnolo Right Ergopower Springs. New, $7.00/each

Part# 70391

• Campagnolo part# RE209
• We have 11 in stock
• The lever uses two of these springs. If one fails, both should be replaced because it is highly probable that the other will soon break.

---

Campagnolo Left Ergopower Springs. New, $7.00/each

Part# 70392

• Campagnolo part# RE210
• We have 43 in stock
• The lever uses two of these springs. If one fails, both should be replaced because it is highly probable that the other will soon break.

---

Campagnolo Ergopower left spring bushing. New, $20.00/each

Part# 70387

• Campagnolo part# RE152/252
• We have two in stock

---

Campagnolo Ergopower Spring Coiling Bushing. New, $8.00/each

Part# 70394

• Campagnolo part# EC-RE057
• We have nineteen in stock.

---

Campagnolo Record Ergopower 2004 - 09 left spring carrier with spring. New, $38.00/each

Part# 70396

• Campagnolo part# RE066
• We recommend replacing the spring carrier as well as the springs when overhauling an ergo shifter.  The carrier is softer metal, and the springs wear on it.  They occasionally crack, but with the added play, the shifting is not as crisp as it can be.
• They come lubed with Campagnolo grease
• We have two in stock

---

Campagnolo Ergopower 1992 - 1997 right index spring carrier. New, $25.00

Part# 70402

Campagnolo part# RE011

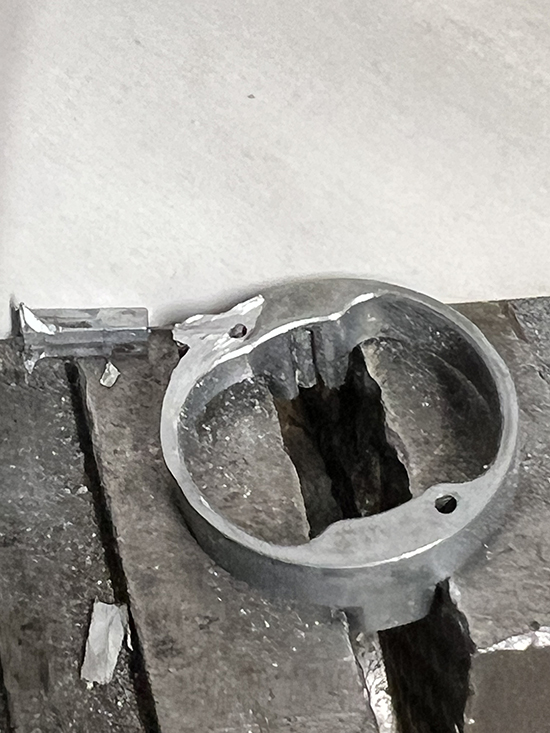

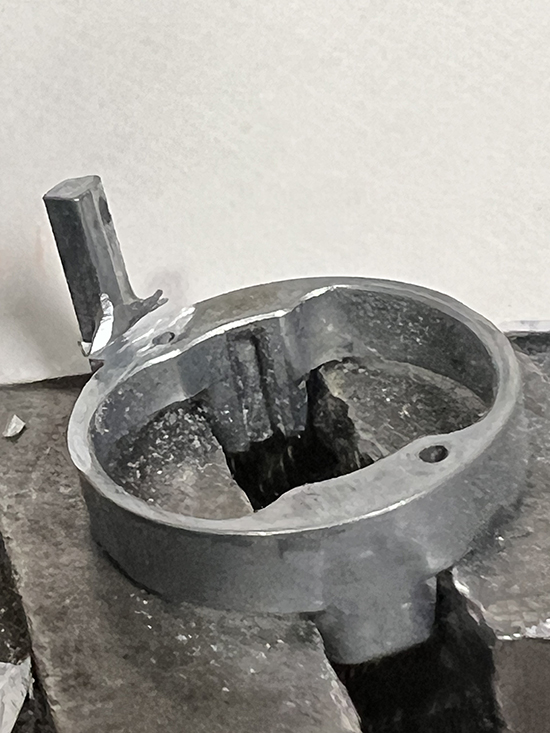

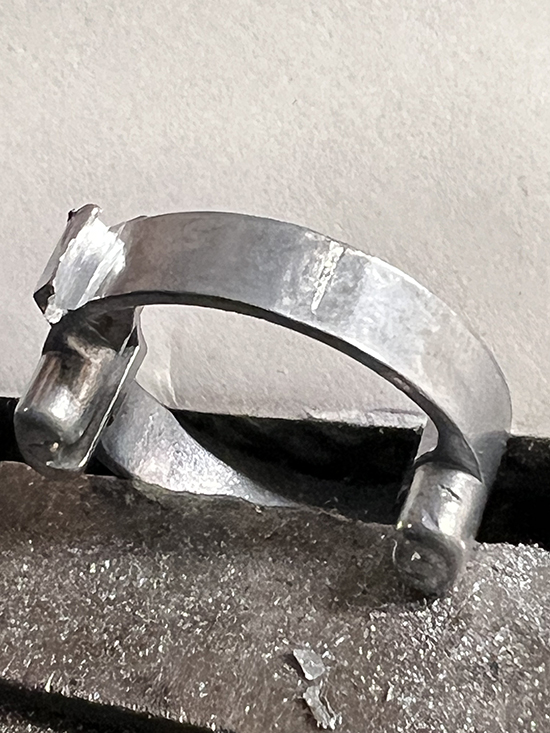

Note: We have no more of these parts in stock. But, we can machine one from Campagnolo's current production for $25.00 for the spring plus $35/labor for a total of $60.00

---

Campagnolo Ergopower 1998 - 2006 right index spring carrier. New, $16.00

Part# 70393

• Campagnolo part# RE111
• We have 22 in stock.

---

Campagnolo Ergopower 1992 - 2006 left index spring carrier. New, $25.00

Part# 70398

• Campagnolo part# RE112
• We have 17 in stock

---

Campagnolo Ergopower Right Finger Shifter Return Spring. New, $10.00/each

Part# 70424

• Campagnolo Part# EC-RE215
• We have three in stock.

---

Campagnolo Ergopower Left Finger Shifter Return Spring. New, $10.00/each

Part# 70423

• Campagnolo Part EC-RE116
• We have three in stock.

---

Campagnolo Record/Chorus Ergopower Bearings. New, $20.00/each

• Campagnolo part# EC-RE026
• We have two in stock.

---

Campagnolo Ergopower lever rubber stop. New, $5.00/each

Part# 70395

• For 1994 - 2008 levers
• This sits in the back of the brake lever to keep the shift lever and brake lever from rattling against each other.

---

Campagnolo Record Ergopower Pivot shaft. New, $18.00/each

Part# 70411

• Campagnolo part# CAEC-RE335
• We have 14 in stock

---

Pivot shaft left-hand threaded bolt, 1994-96. New, $10.00

Part# 70413

• Campagnolo part# CAEC-RE007R
• This bolt, with left-handed threads, bolts into the Ergopower pivot shaft.
• We have fourteen in stock.

---

Campagnolo Ergopower lever backing plate, EC-RE024. New, $10.00

Simple, but necessary

Another view

The other side of the plate.

---

Campagnolo Ergopower handlebar clamp band. New, $28.00

Part# LD9867

• Campagnolo part# RE103
• We have four in stock

This will secure the lever to the handlebars.

---

Campagnolo 1996-98 Record Ergopower clamp & bolt for 8 & 9-speed. New, $28.00

Campagnolo part# CAEC-RE103

---

Campagnolo Ergopower 1994-97 clamp with bolt. New, $25.00

• Campagnolo part# CAEC-RE003
• We have five in stock.
• Will work on: ’94 Stratos, ’94-’95 Record, ’94-’97 Chorus, ’94-’97 Athena, Veloce, ’95-’97 Mirage, ’94-’97 Avanti

---

Campagnolo Ergopower inline barrel adjuster. New, $15.00

---

Campagnolo Ergopower top left ratchet ring (cam). New, $75.00

Part# 70403

• Campagnolo part# EC-RE134
• We have eleven in stock

---

Campagnolo Ergopower internal right 8-speed ratchet (cam). New, $75.00/ each

Part# 70388

• Campagnolo part# EC-RE013/052
• We have two in stock

---

Campagnolo Ergopower internal right & left 8-speed ratchet (cam) set. Used, $75.00

The top piece, for the left lever, is called the Lever Ratchet Ring

---

Campagnolo Ergopower '97 -'98 internal right 9-speed ratchet (cam). New, $90.00/ each

Part# 70404

• Campagnolo part# EC-RE064
• For 1997 - 1998 levers
• We have 5 in stock
• Recessed

---

Campagnolo Ergopower internal right 9-speed ratchet (cam) for Record & Chorus. New, $75.00

Part# 70419

• Campagnolo part# EC-RE113-213
• Non-recessed
• We have eight in stock.

---

Campagnolo Ergopower '98-current internal right 9-speed ratchet (cam) for Record & Chorus. New, $75.00

Part# 70408

• Campagnolo part# EC-RE313
• We have 6 in stock.

---

Campagnolo Ergopower left (front) ratchet (cam). New, $25.00

Part# 70420

• Campagnolo Part# EC-RE114
• We have 3 in stock.

---

Campagnolo 1997-'03 Ergopower left (front) ratchet (cam), recessed. New, $25.00

Part# 70421

• Campagnolo Part# RE214-314
• Uses washer AT061
• We have 5 in stock.

---

Campagnolo Ergopower 1998 - Current, left (front) ratchet (cam). New, $75.00

Part# 70422

• Campagnolo Part# CAEC-RE214
• We have 4 in stock

---

Campagnolo Ergopower '99 -'01 internal right 9-speed ratchet (cam). New, $80.00/ each

Part# 70408-02

• Campagnolo part# EC-RE063
• For 1999 - 2001 levers
• We have 10 in stock.

---

Campagnolo 9-speed Ergopower right lever top ratchet ring. New, $24.00

Part# 70399

• Campagnolo part# EC-RE133
• We have 20 in stock.

---

Campagnolo Ergopower right 10-speed index ratchet (cam) gear. New, $75.00

Part# 70405

• Campagnolo part# RE061
• We have one in stock.

---

Campagnolo Ergopower cables and housing kit. New, $75.00

Part# 85510

• We have two kits in stock.

---

Campagnolo Ergopower brake wire. New, $10.00

Part# 85494

• Made in Italy
• We have four in stock

---

Campagnolo Ergopower shift cable. New, $10.00

Part# 85495

• Made in Italy.
• We have 21 in stock.

---

1st Generation right Ergopower body shifter cable ferrule. Used, $50.00/each

An Ergopower body and the black shifter cable ferrule.

The ferrule is shown fitted into the lever near where the lever sits against the handlebars.

Here's just the ferrule.

The other side of the ferrule

---

Campagnolo Ergopower lever derailleur cable step-down ferrule. New, $1.00/each

Campagnolo part# CACG-CS013

We have six
