Track Bike/Fixie wheels
Track Bike/Fixie wheels on this page:
Wheelsets: Aerospoke track clincher wheelset | Formula hub/Mavic Open Pro clincher wheelset | Phil Wood track hubs/ Mavic Open Pro clincher rims wheelset | Phil Wood hubs/Mavic Record du Monde tubular wheelset
Front wheels: Surly Track Cartridge-Bearing 32-hole hub/Alex DA22 700c clincher rim | Solid axle high-flange, cartridge-bearing 32-hole hub/Alex DC19 700c rim
We don't have an on-line shopping cart. If you see something that interests you or if you have a question, please call us at (503) 480-2001 or email: sscycleworks@comcast.net
About our wheels:
- All used wheels that we offer for sale have been overhauled. Some have been re-built with new spokes, bearings, cones, hubs or rims, according to their needs.
- Quick-release new wheels will be provided with a skewer.
- All wheels, new or used, have been trued, tensioned, and bearing tension adjusted.
- Axle bearing tension performed.
Aerospoke USA Track Clincher Wheelset. New, $700.00/set
- Includes 14t fixed cog w/lockring and ACS CrMo Crossfire 16t freewheel.
- Front wheel weight w/axle bolts: 1640g.
- Rear wheel weight w/axle bolts, fixed cog & lockring, freewheel: 1940g.
- https://sandiegocyclery.com/shop/fixed-gear/aerospoke-700c-track-wheel/
The set

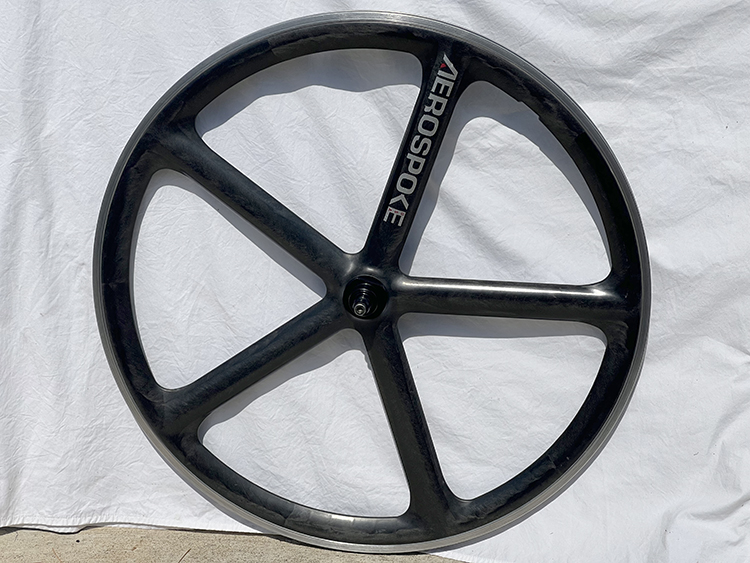

Just the front wheel.
The front wheel's hub.
It is an Aerospoke wheel.
The rear wheel
The fixed gear on the rear wheel.
The ACS freewheel on the other side of the wheel.
The Aerospoke name on the rear wheel.
Formula hub/Mavic Open Pro 32-hole clincher track wheelset. Wheelset with wing nuts, Used, $580.00/set
Specially tapped wingnuts, separately $80.00/set
The wheelset's specs:
- Formula cartridge bearing hubs, 32h. Rear is Fixed gear/Freewheel.
- Mavic Open Pro rims, DT Revolutionn 15/17/15 radial front wheel with 7005 alloy nipples.
- Rear wheel DT Revolution 14/17/14 spokes, laced 3x with 7005 alloy nipples.
- Rox Ultra rimstrips.
- Huret Luxe front wingnuts, rear Marcel Luxe wingnuts. Wingnuts have been re-tapped to 9x1 for front, and 10x1 for rear.
- This used wheelset was mounted on a bike with only a front brake, so there is no brake wear on the sidewalls of the rear wheel.
- Front weight with wingnuts, 810g. Without wingnuts, 780g.
- Rear weight with wingnuts & lockring, 930g. Without wingnuts, 900g.

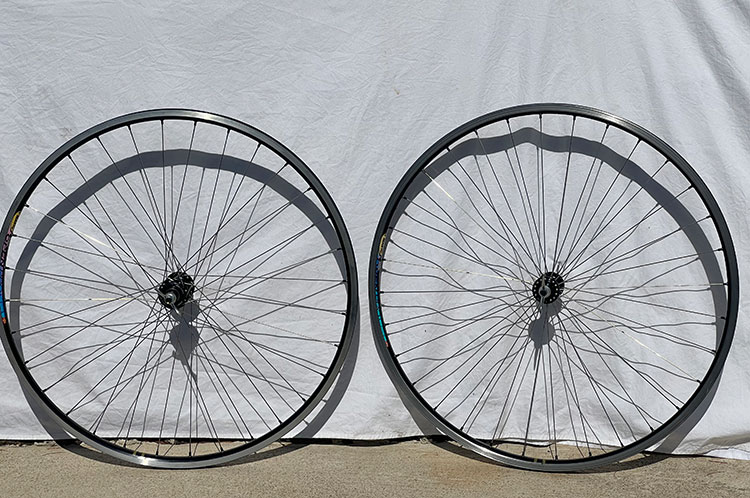

The wheelset

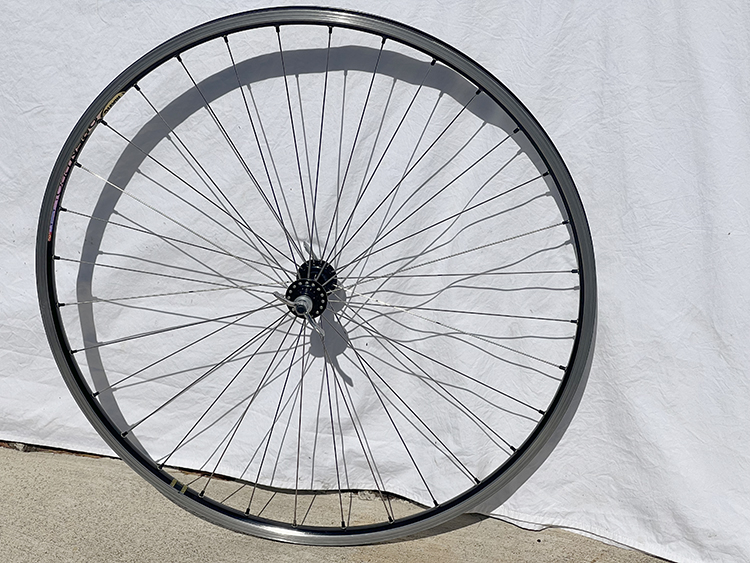

The front wheel
The front hub.

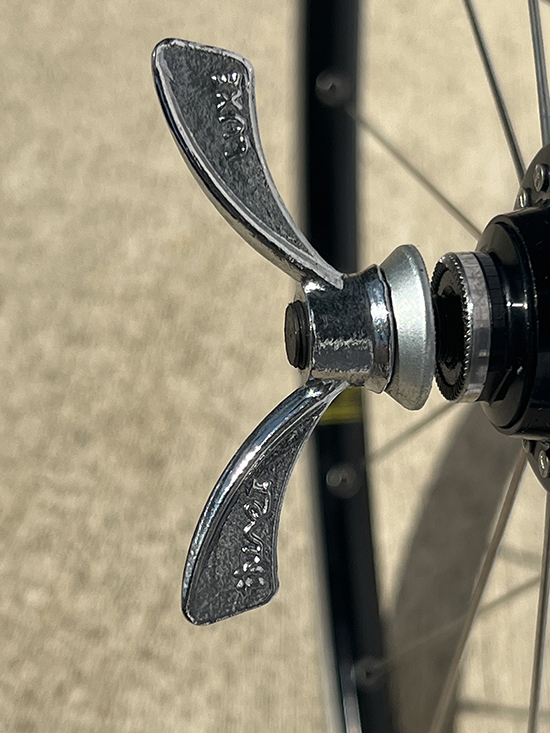

One of the specially tapped Huret wing nuts.
The front wheel's Mavic Open Pro clincher rim
The real wheel.

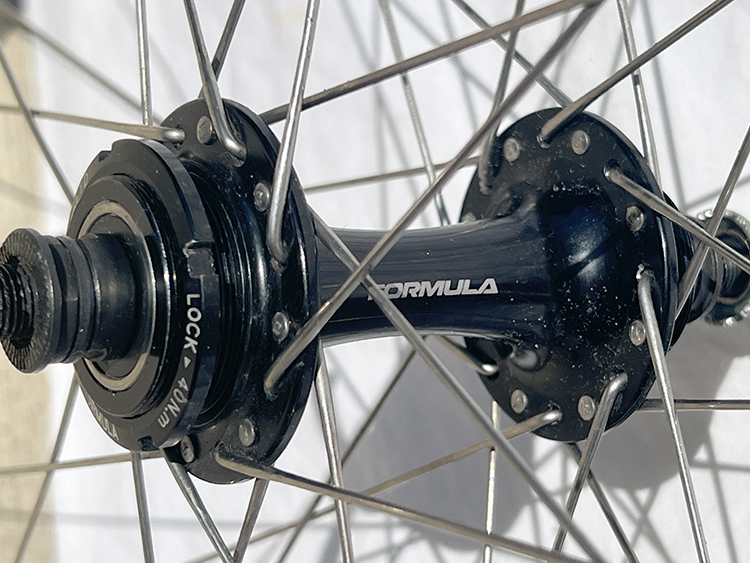

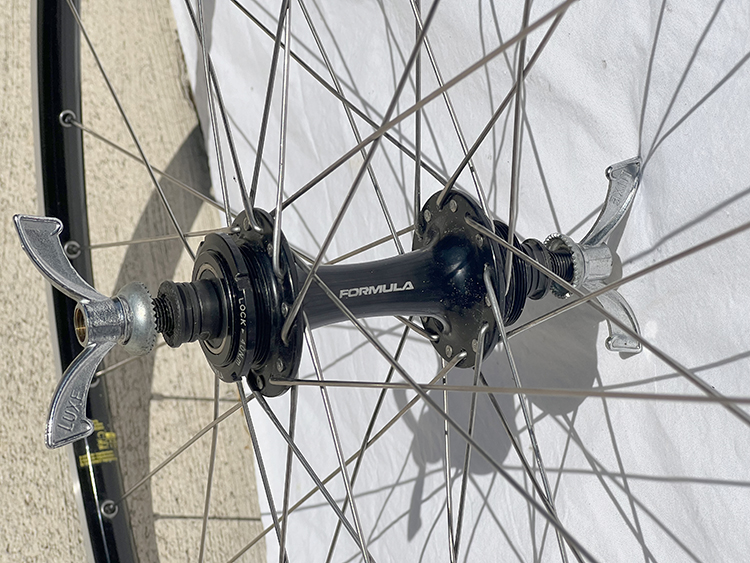

The rear hub's fixed-gear side.
Close-up of the rear hub's fixed-gear side.
The rear wheel's Mavic Open Pro clincher rim.
One of the specially prepared Marcel Luxe wingnuts
Phil Wood track hubs/ Mavic Open Pro clincher rims track wheelset. Used, $900.00/set
- Built with double-butted DT 14/15/14 guage stainless steel spokes.
- Front wheel is 32-hole, built cross 3 and weighs 930 grams. It will come with a Velox rimstrip.
- Rear wheel is built on a 36-hole fixed gear hub, cross 4 and weighs 1,060 grams. It will come with a Velox rimstrip.

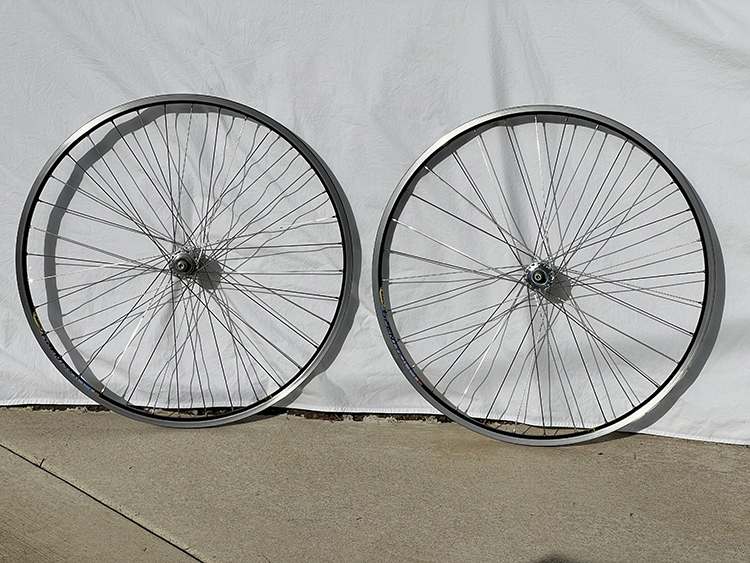

Here's the set.

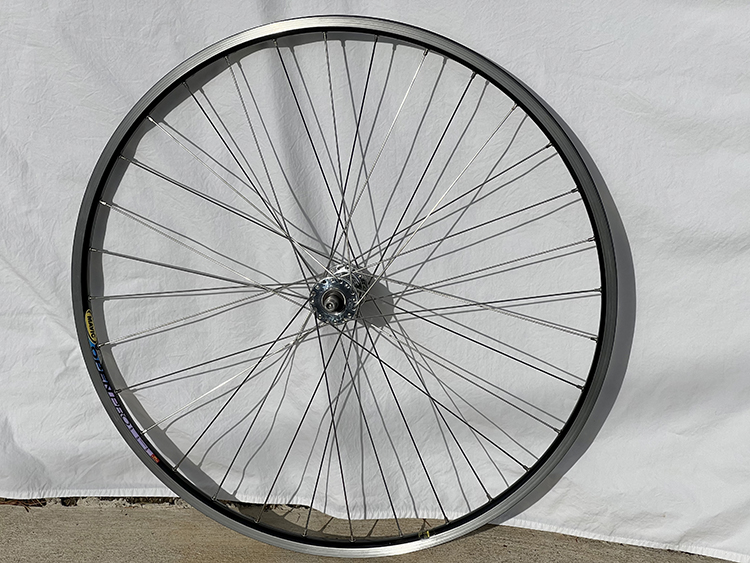

The front wheel

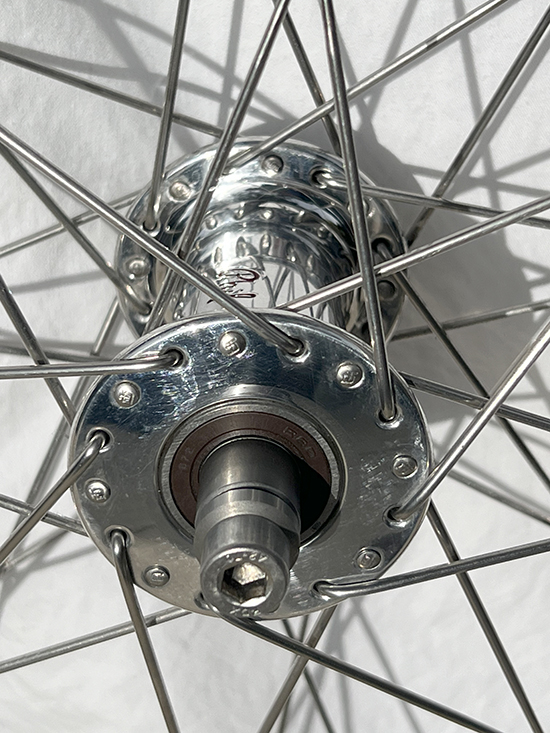

Here's the front hub.

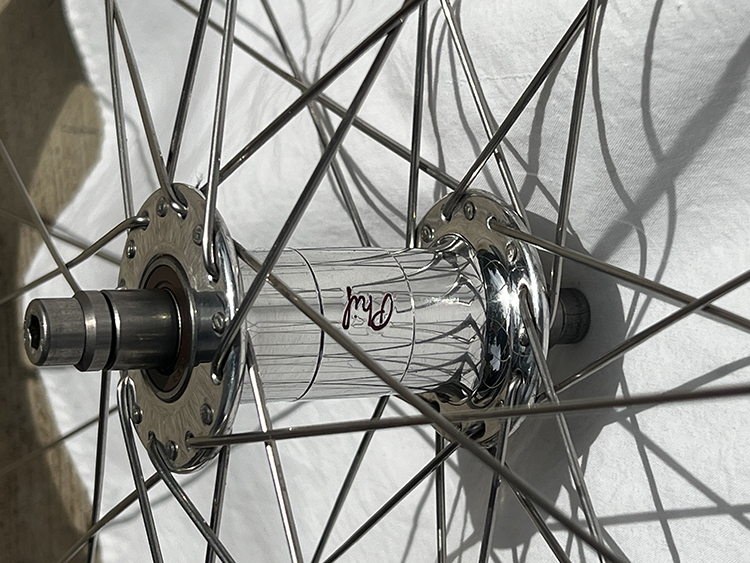

Side view of the front hub.

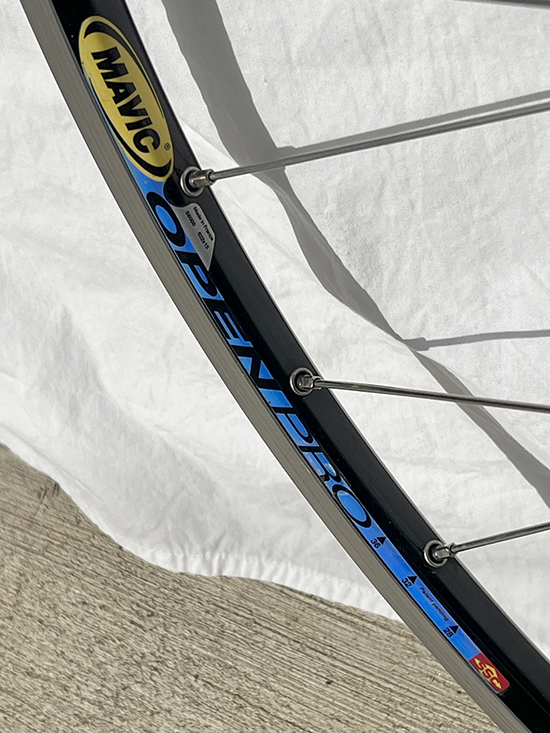

The front Mavic Open Pro rim.

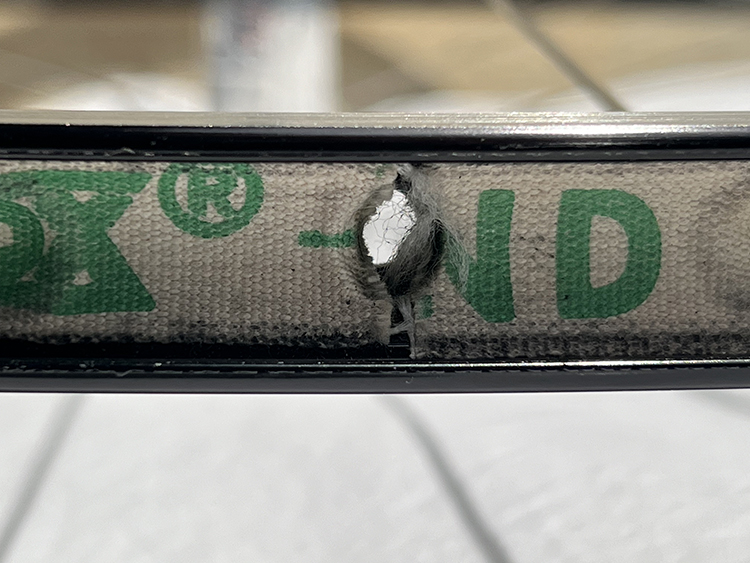

Looking in the rim at the valve hole.

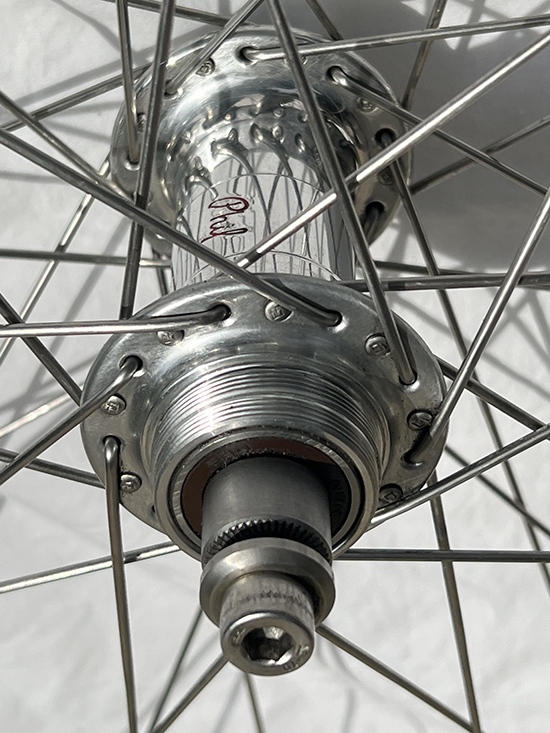

The rear hub.
End on view of the rear hub.
Non-drive side of the rear hub.

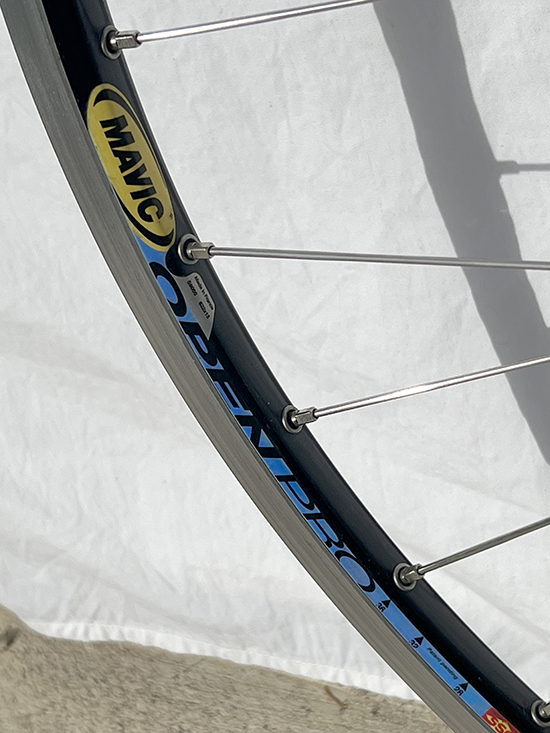

Rim of the rear wheel.
Looking iu the rear rim at the valve hole
Phil Wood track hubs/Mavic Record du Monde de L’Heure Gold tubular rims/Tufo S3 Pro tires wheelset. New, $1,100.00/set
Both wheels have tied and soldered DT spokes and Tufo S3 Pro 28 sew-up tires.
The Mavic Record du Monde de L’Heure Gold rims weigh 300.5 grams each according to VeloBase.com.
Front wheel: 32-hole, DT 14/15 gauge stainless steel spokes with alloy nipples. Spokes are tied & soldered, laced 3-cross to Mavic Record du Monde de L’Heure Gold rims with zinc-plated double eyelets. Mounted with Tufo S3 Pro 28 tire. Wheel weighs 1,070 grams.
Rear wheel: 36-hole hub with both sides made for fixed gear. DT 14/15 gaude stainless steel spokes with alloy nipples. Spoke are tied & soldered, laced 4-cross to Mavic Record du Monde de L’Heure Gold rims w with zinc-plated double eyelets. Mounted with Tufo S3 Pro 28 tire. Wheel weighs 1,180 grams.

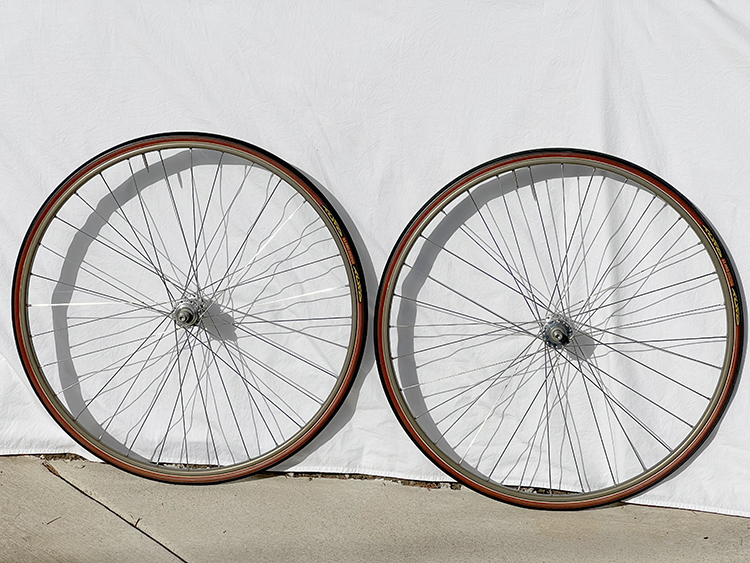

Here's the wheelset

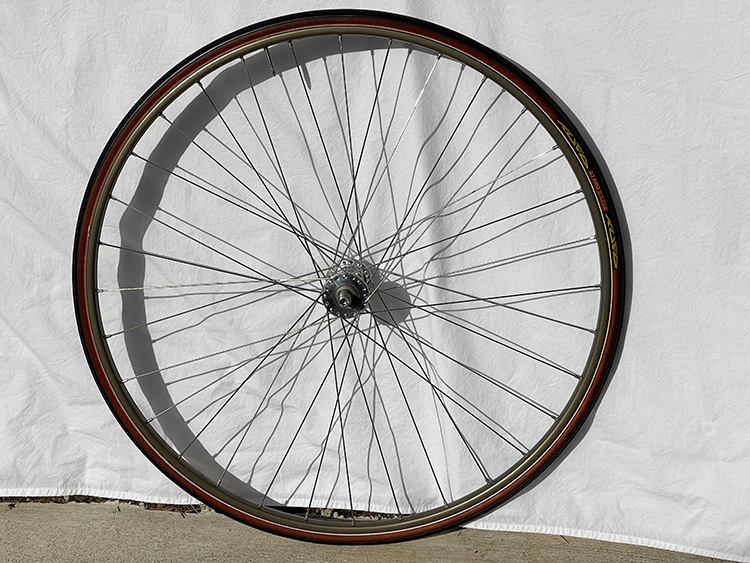

Here's the front wheel.

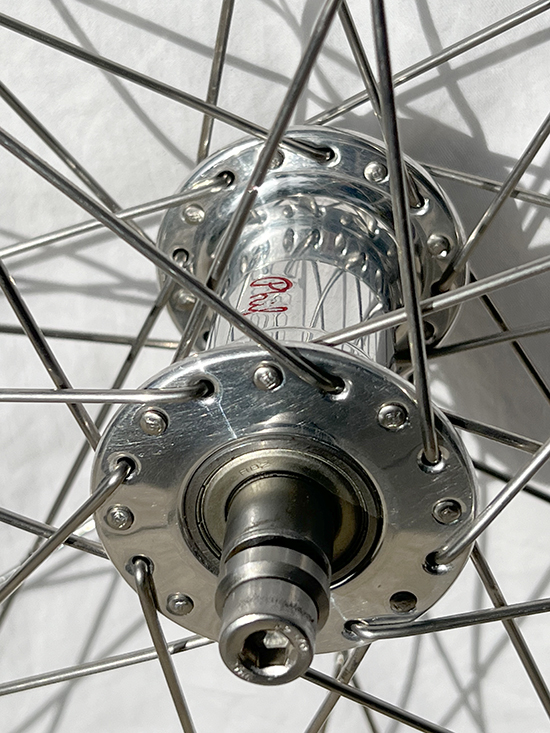

Close-up of the front Phil Wood hub.
The front hub from a different angle

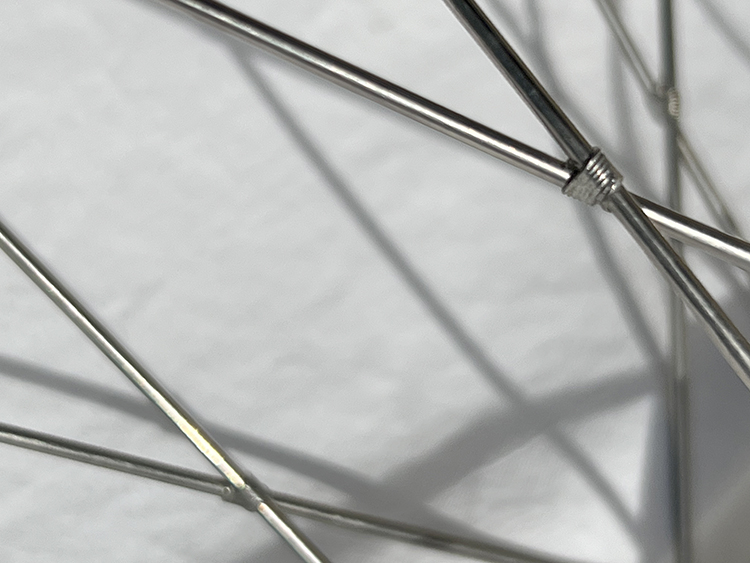

A tied and soldered spoke junction, beautifully done.

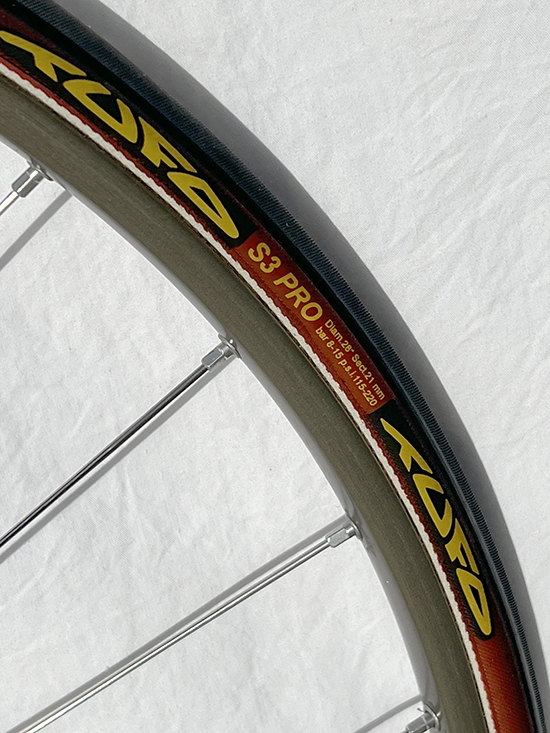

The Tufuo S3 Pro tire.
Close-up of the rim and tire sidewall

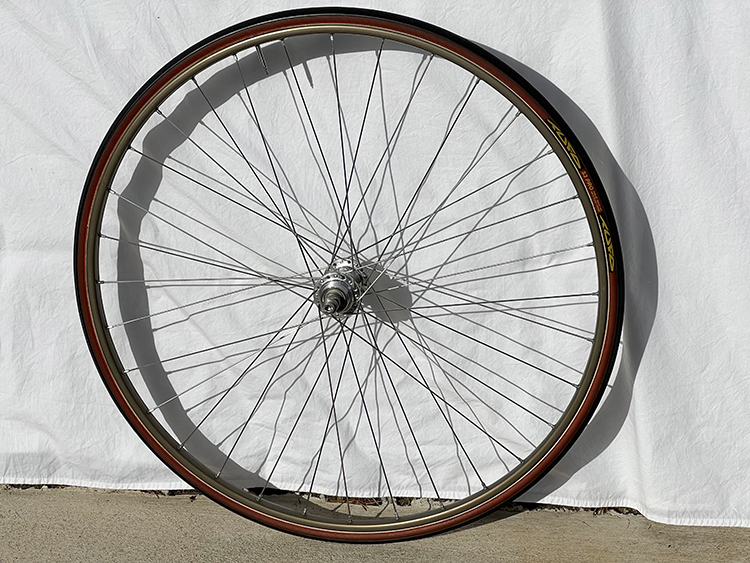

Here's the rear wheel.

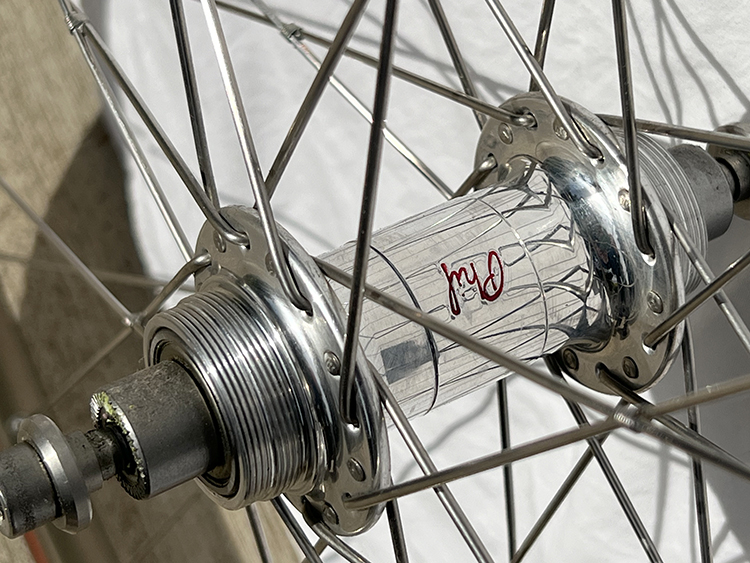

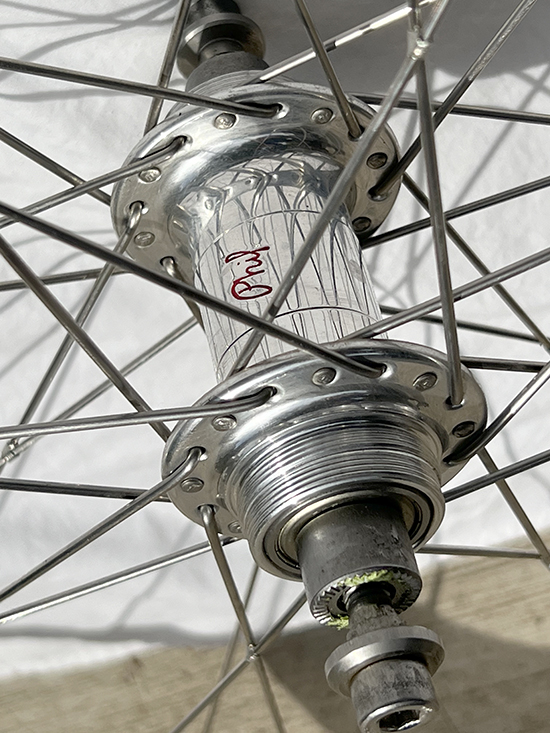

Close-up of the rear hub, showing the stepped-down threads for the track lock ring.
Here's the other side of the rear hub, which also has a set of stepped-down threads for a track lock ring.

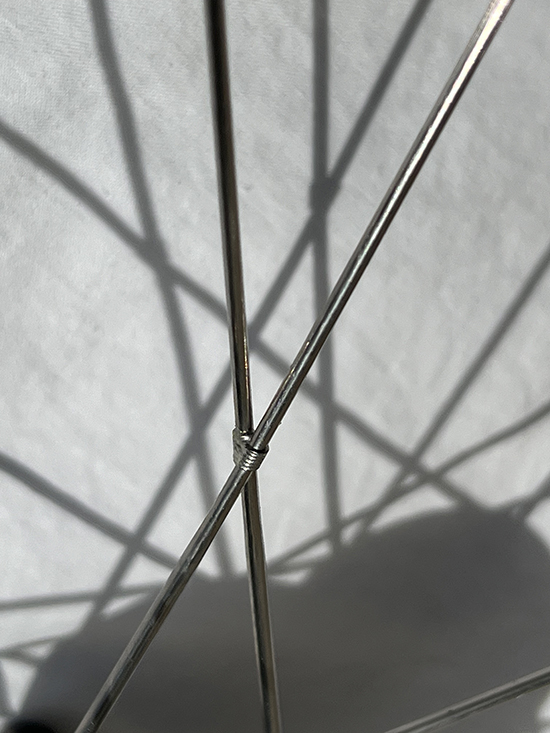

Tied and soldered spokes on the rear wheel.
Close-up of the rear sidewall.
The rear Tufo S3 Pro tire
Front track wheel built cross 3 with Surly Track Cartridge-Bearing 32-hole hub/Alex DA22 700c clincher rim. Used, $70.00/each
- This wheel is built with DT 14-gauge spokes.
- This wheel weighs 970 grams.
Side view
Here's the hub.

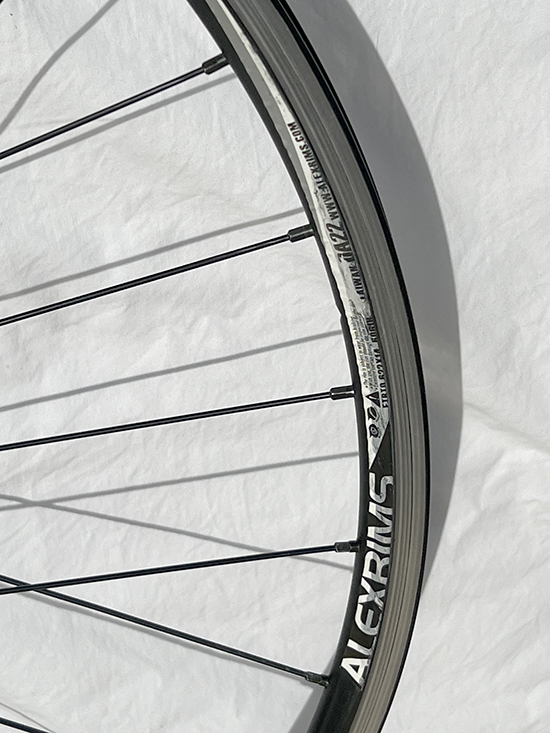

The Alex clincher rim
Looking in the Alex rim.
Front track bike wheel built with standard solid axle, high-flange, cartridge-bearing 32-hole hub/Alex DC19 700c rim. New, $100.00/each
Part# 51283
- This wheel is built with "S" brand stainless steel spokes.
- This wheel weighs 1,090 grams.
- We have four in stock.
Here's a side view of the wheel.
The wheel's high-flange hub
Side view of the hub.
The wheel's Alex DC19 rim
Looking in the Alex DC19 rim at the valve hole.
