Road Bicycle Wheels built with Mavic hubs

Wheels built with Mavic hubs on this page:

Wheelsets: Mavic 501 32-hole hubset/Mavic 700c Open 4 CD rims

Front wheels: 650c wheel Mavic 500RD 28-hole hub/Sun Mistral rim, DT Bladed spokes

Complete wheels built in the Mavic factory are posted here.

We don't have an on-line shopping cart. If you see something that interests you or if you have a question, please call us at (503) 480-2001 or email: sscycleworks@comcast.net.

1. All used wheels that we offer for sale have been overhauled. Some have been re-built with new spokes, bearings, cones, hubs or rims, according to their needs.
2. Quick-release new wheels will be provided with a skewer.
3. All wheels, new or used, have been trued, tensioned, and bearing tension adjusted
4. Axle bearing tension performed.
5. Important: Mavic hubs use radial cartridge bearings, which allow the bearings to continue to load when the wheel is at an angle.
6. For a video with lots of information on Mavic hubs please click here.

---

Wheelset built with Mavic 501 32-hole hubset/Mavic 700c Open 4 CD rims. Used, $600.00/wheelset

Front wheel: Built with DT 15/17 gauge butted spokes built cross 3, alloy nipples, with Velox rim tape. Wheel weighs 920 grams

Rear wheel: 130mm wide, built with DT 14/17 gauge butted spokes on the driveside with 8 brass nipples on drive side, the rest of the drive-side spokes are alloy.  Non-driveside is built cross 3 with 15/17 gauge butted spokes and alloy nipples. The rear wheel weighs 1,000 grams

Here's the wheelset

The front wheel

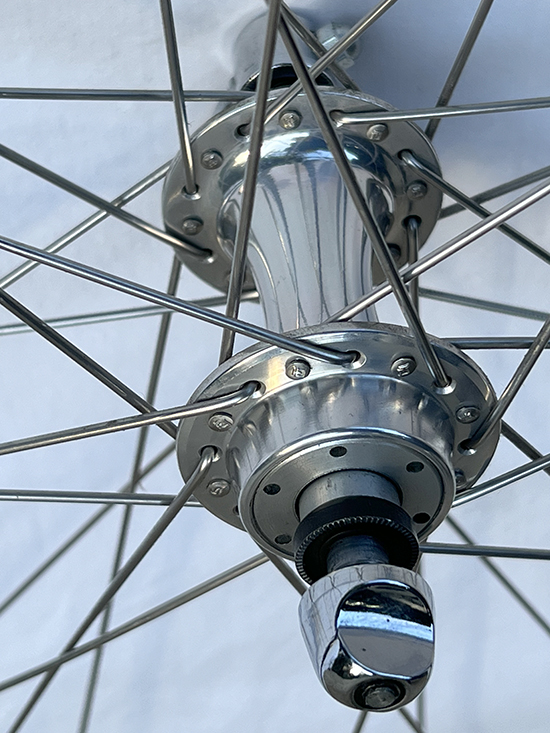

The front Mavic 501 hub.

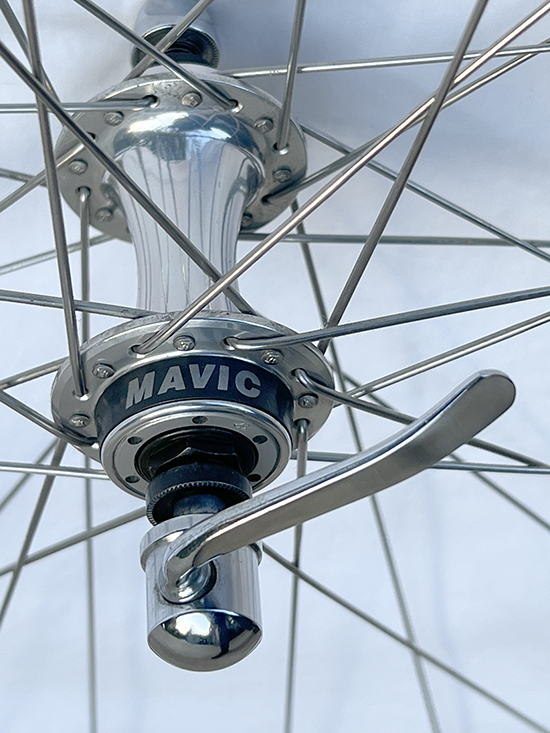

The other side of the front hub

The hub rotated to show its other side.

The front Mavic Open 4CD rim

Looking in the Mavic rim at the valve hole

Here's the rear wheel.

The rear Mavic hub.

The other side of the rear hub.

Another look at the Mavic rear hub from the non-drive side.

Here's the rear Mavic Open 4CD rim

Looking in the rear Mavic Open 4CD at the valve hole

---

Front 650c wheel built with Mavic 500RD 28-hole hub/Sun Mistral rim & DT Bladed spokes. Used, $150.00/each

• This wheel has one round 275mm spoke.
• This wheel weighs 800 grams.
• This is a quality wheelbuild with a mirror spoke assembly.

Side view of the wheel.

Here's the Mavic hub showing the mirror spoke assembly. In this picture the inside spokes on both flanges are pointing in the same direction, as of course, are the outside spokes.

Side view of the hub.

In this photo you can see the one round spoke.

The aerodynamic Sun Mistral rim.

The rim is hard anodized.

Looking in the Sin Mistral rimat the valve hole.
